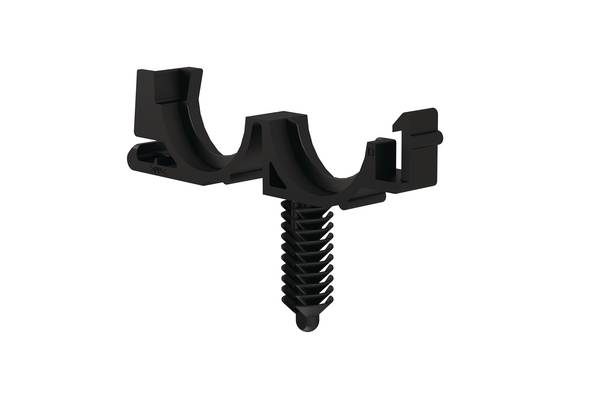

Corrugated tube clip, black, 3500pcs.
Art.-No. 133-02787 | CDC13FT6.35-PA66-BK |

Copied
Self-affixing fir tree configuration.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CDC13FT6.35-PA66-BK
    Pack Cont. 3500pcs.
    Package Content packed in carton
    Type CDC13FT6.35
    ⌀ (D2) 19.6mm
    ⌀ D 0.61"
    ⌀ D2 0.77"
    Bundle ⌀ 13.0mm
    Bundle ⌀ max. 13.0mm
    Diameter (D) 15.6mm
    Height (H) 53.6mm
    Length (L) 41.2mm
    UV-Stabilised No
    Width (W) 7.6mm
    for Hole ⌀ (FH) 6.35 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026580579
    Packaging 3 - Height (m) 0.1730375m
    Packaging 3 - Length (m) 0.57785m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0349m³
    Packaging 3 - Width (m) 0.34925m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 31162906
