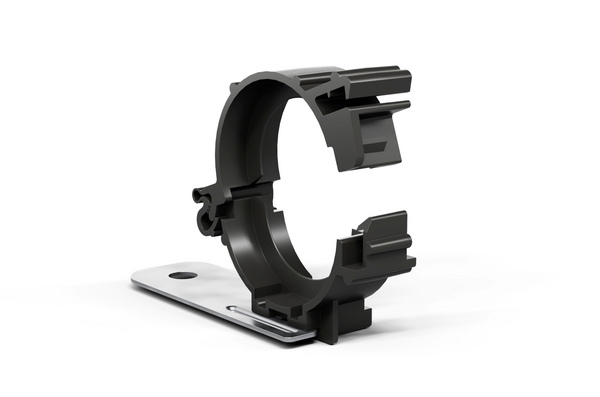

Corrugated tube clip, black, 500pcs.

Art.-No. 133-03474

| CDC25S40M6-PA66HS-BK

|

HellermannTyton has conduit clamps in multiple configurations to mount to a variety of surfaces.

This product is not available anymore.

Please contact our sales team.

Add to watchlist

Downloads

Base Data

Colour	Black (BK)
Fixation Method	screwable
Key product features	for convoluted tubes or with rib, reusable, removable
Material	Polyamide 6.6, heat stabilised (PA66HS)
Mounting Screw Type	M6 Screw
PART DESCRIPTION	CDC25S40M6-PA66HS-BK
Package Content	500pcs.
Package Content packed in	carton
Type	CDC25S40M6
UV-Stabilised	No

Product Dimensions

⌀ (D2)	35.4mm
⌀ D	1.06"
⌀ D2	1.39"
Bundle ⌀	25.0mm
Bundle ⌀ max.	25.0mm
Diameter (D)	27.0mm
Height (H)	79.6mm
Length (L)	74.8mm
Offset Length	40.5mm
Stud ⌀	M6
Width (W)	23.0mm
for Hole ⌀ (FH)	6.4 - 6.6 mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 V2
Halogen-free	No
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026595481
Packaging 3 - Height (m)	0.352424999999999m
Packaging 3 - Length (m)	0.5715m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0703m³
Packaging 3 - Width (m)	0.34925m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162906
