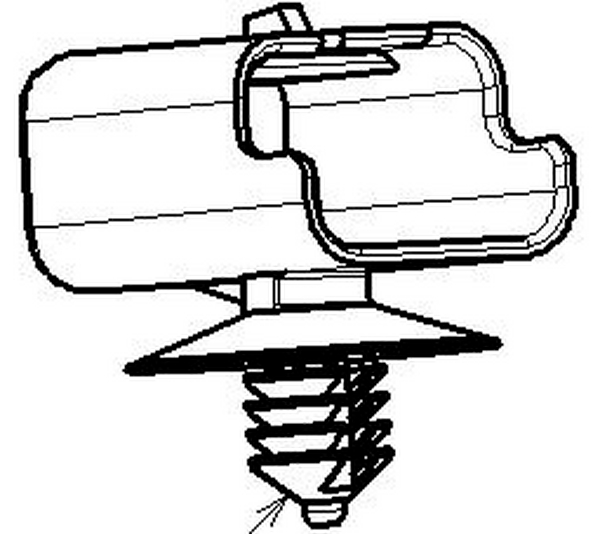

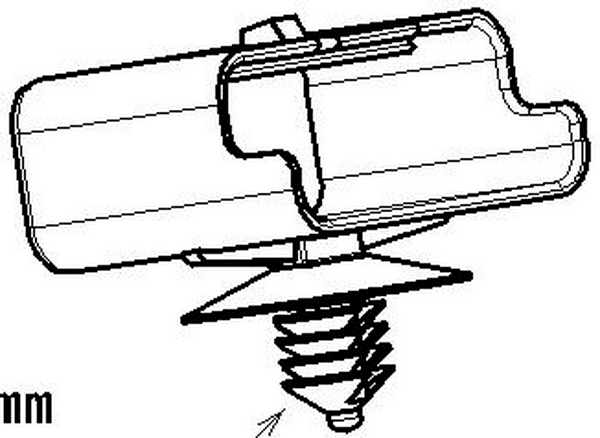

Protection cap for connectors, grey, 600pcs.
Art.-No. 151-00914 | CP2FT6-PA46-GY |

Copied

    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Grey (GY)
    Fixation Method Fir Tree
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION CP2FT6-PA46-GY
    Pack Cont. 600pcs.
    Package Content packed in box
    Product Group Connector Clips for round holes
    Type CP2FT6
    Disc ⌀ 20mm
    Height (H) 23.9mm
    for Hole ⌀ (FH) 6.2 - 6.5 mm
    for Panel Thickness min - max 0.7 - 5 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +150 °C, (+195 °C, 500 h)
    Country of Origin FR
    GTIN-13 / EAN 4031026434735
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
