Cable clip, T=1.5 -12.0mm, ⌀6.1 - 6.9 mm, Dmin=10.5mm, Dmax=13.8mm
Art.-No. 151-04423 |

Copied

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist
    Downloads
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Description Built to accommodate three parallel configurations, this clamp is fully compatible with one 12 mm and two 10 mm routings, making it a versatile solution for managing multiple lines while maintaining an organized and stable routing system.
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION DBLCLMP10MOC12FT6LG-PA66HIRHSUV/TPE-BK
    Package Content 650pcs.
    Package Content packed in pack
    Type DBLCLMP10MOC12FT6LG
    UV-Stabilised Yes
    Bundle ⌀ 10.5-13.8mm
    Bundle ⌀ 2 max. 10.0mm
    Bundle ⌀ 2 min. 10.0mm
    Bundle ⌀ max. 13.8mm
    Bundle ⌀ min. 10.5mm

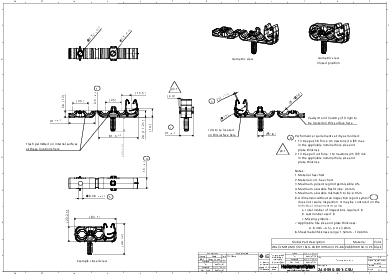

    Depth (D) 16.0mm
    Height (H) 48.5mm
    Length (L) 63.1mm
    Panel Thickness 1.5 -12.0mm
    Width (W) 63.1mm
    for Hole ⌀ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 1.5 - 12 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026758954
    Packaging 1 - Qty 650
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.209549999999999m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0504m³
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 31162906
