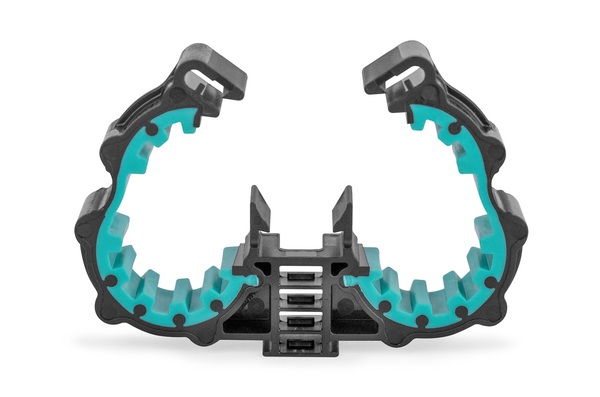

Cable clip for stud, ⌀M6

Art.-No. 151-04189

| DCTC16SBS6-PA66HIRHS/TPE-BK/GN

|

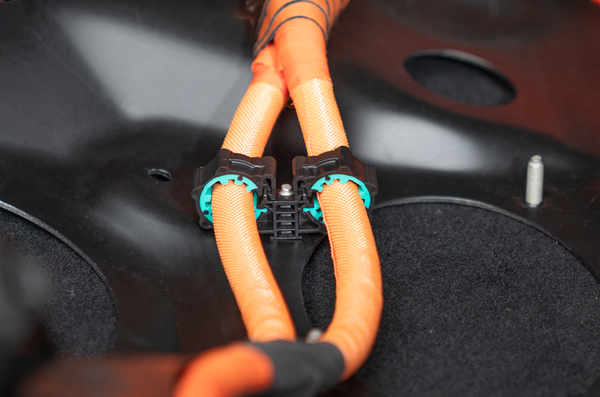

Two‑component clamp with soft TPE insert for anti‑rattle and vibration‑damping performance, enabling secure multi‑cable routing.

Attach before installing pipe or hose
Parts labelled 'I' are interlockable for more installation options
Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips

Add to watchlist

Downloads

More products in this product group:

Fixing elements for weld studs

Base Data

Application	Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
Colour	Black (BK), Green (GN)
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Thermoplastic Elastomer (TPE)
PART DESCRIPTION	DCTC16SBS6-PA66HIRHS/TPE-BK/GN
Package Content	1000pcs.
Package Content packed in	carton
Product Family	for tubes and harnesses with automatic locking feature
Product Group	Fixing elements for weld studs
Type	DCTC16SBS6
Weight/Unit	0.013kg

Product Dimensions

Attach to ⌀	16
Height (H)	45.8mm
Length (L)	66.7mm
Stud ⌀	M6
Width (W)	14mm

Specifications

ELV compliant (Article 4 - 2)	Yes
Hazardous Goods	No
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	CN
Customs Number	39269097
GTIN-13 / EAN	4031026740812
Packaging 3 - Qty	600
Packaging 3 - Type	carton
Packaging 3 - Weight (kg)	7.8kg

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
