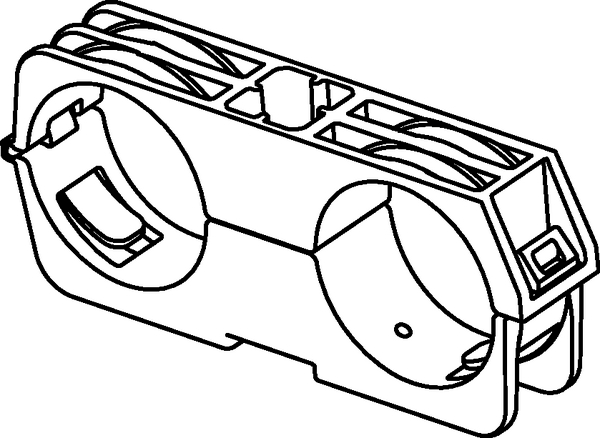

Cable clip for stud
Art.-No. 151-03590 | DLC26M8-PA66HIRHSUV-BK |

Copied

    • Attach before installing pipe or hose
    • Parts labelled 'I' are interlockable for more installation options
    • Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips
    Add to watchlist
    Downloads
    Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION DLC26M8-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in box
    Type DLC26M8
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026677033
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
