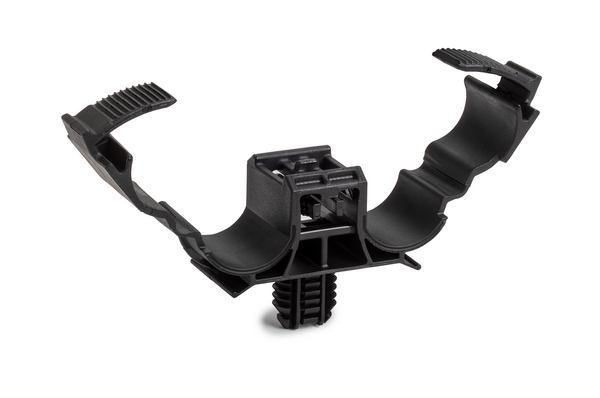

Ratchet O-Clamp
Art.-No. 151-04432 | DROC15-19FTOVAL-PA66HIRHSUV-BK |

Copied

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION DROC15-19FTOVAL-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in pack
    Product Group Ratchet O-Clamp
    Type DROC15-19FTOVAL
    Bundle ⌀ 15-19mm
    Bundle ⌀ max. 19mm
    Bundle ⌀ min. 15mm
    Height (H) 53.4mm
    Length (L) 100.7mm
    Min.Tensile Strength 445N
    Panel Thickness max. 0.6 - 6.75mm
    UV-Stabilised Yes
    Width (W) 20.5mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026759609
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
