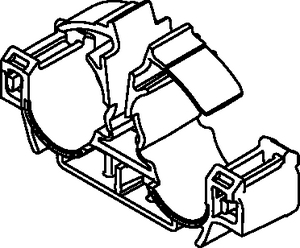

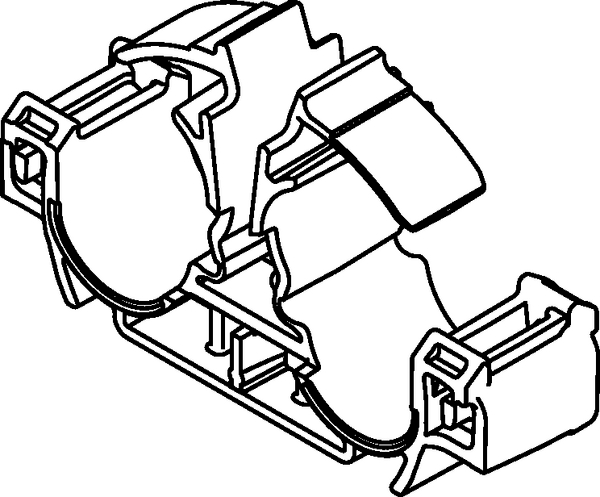

Ratchet O-Clamp
Art.-No. 151-04434 | DROC15-19M5M6-PA66HIRHSUV-BK |

Copied
Ratchet P-Clamps in multiple configurations to handle a wide range of diameters and applications.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Stud Mount
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION DROC15-19M5M6-PA66HIRHSUV-BK
    Pack Cont. 500pcs.
    Package Content packed in pack
    Product Group Ratchet O-Clamp
    Type DROC15-19M5M6
    Bundle ⌀ 15.0-19.0mm
    Bundle ⌀ max. 19.0mm
    Bundle ⌀ min. 15.0mm
    Height (H) 42.09mm
    Height (H2) 22.5mm
    Length (L) 74.29mm
    Length (L2) 37.0mm
    Min.Tensile Strength 445N
    Stud ⌀ M5, M6
    Width (W) 20.5mm
    Width (W2) 6.2mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026759623
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Ratchet P Clamp Ratchet P Clamp

    Ratchet P-Clamp for mounting cables and hoses

    Discover the versatile addition to our range of metal and plastic cable clamps: the Ratchet P-Clamp. The innovative design makes it possible to fix wires, cables, hoses and pipes on a single mounting point in two separate work steps. Installers and maintenance engineers no longer have to hold the bundle and the clamp awkwardly in one hand whilst fixing them securely with the other.

    P-Clamp >
    Wire clamps Wire clamps

    Cable clamps

    Whether plastic or metal, adjustable or flat, for heavy duty or other industries: Find the right cable clamp for your application now.

    Cable clamps >
    Cable clips Cable clips

    Cable clips for industrial applications

    From adhesive cable clips to wire clips for parallel routing or fluid management: Discover our product portfolio here.

    Cable clips >
