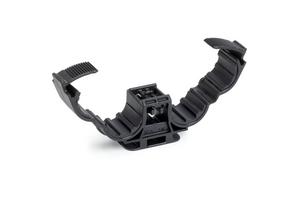

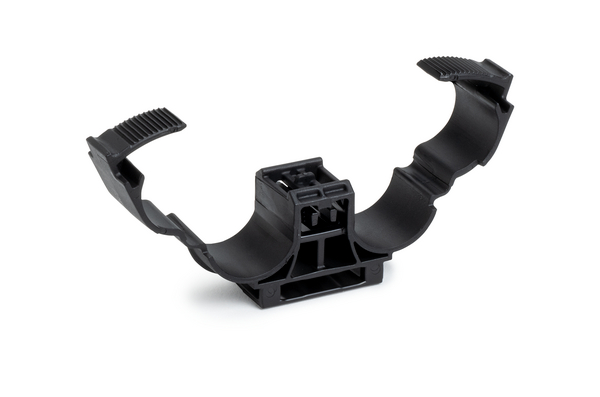

Ratchet O-Clamp
Art.-No. 151-04568 | DROC18.5-22.5SNAP-PA66HIRHSUV-BK

Copied

    • Compact size for mounting in tight spaces.
    • Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part.
    • Fully enclosed clamp prevents slip, crush and fallout under vacuum.
    • Release latch opens with simple twist of screwdriver to speed maintenance.
    Add to watchlist
    Downloads
    Colour Black (BK)
    Description The Ratchet O-Clamp is designed for tight spaces, maintaining a low-profile, adjustable grip around a routing while providing a robust mounting solution. It is designed for fluid routing and high-voltage cable management.
    Fixation Method slide-on
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 445N
    PART DESCRIPTION DROC18.5-22.5SNAP-PA66HIRHSUV-BK
    Package Content 450Carton
    Package Content packed in carton
    Product Family With Slot for Metal Bracket
    Product Group Ratchet O-Clamp
    Type DROC18.5-22.5SNAP
    UV-Stabilised Yes
    Weight/Unit 0.01259kg
    Bundle ⌀ 18.5-22.5mm
    Bundle ⌀ max. 22.5mm
    Bundle ⌀ min. 18.5mm
    Height (H) 50.4mm
    Length (L) 112.2mm
    Width (W) 20.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026777924
    Packaging 1 - Qty 450
    Packaging 1 - Weight (kg) 5.669905kg
    Packaging 3 - Height (m) 0.209549999999999m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0504m³
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
