Cable clip with pipe/tube holder, black, 500pcs.
Art.-No. 156-01518 | DTC10-13X14-S-PA66HIRHS-BK |  Details

DTCs for easy assembly of rotatable routed tubes and harnesses.

    • Fixing clip offers full 360° rotation
    • For routing of two different bundles
    • Simply clip on a wire or hose
    • Suitable for post-installation of bundles
    Add to watchlist

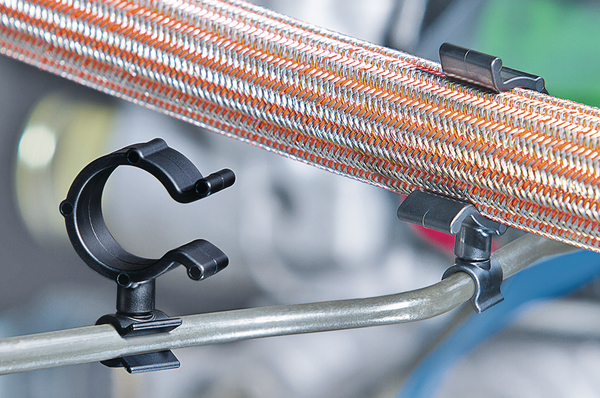

    Application These pipe clips interconnect two different bundles of goods, of various size and type. The mobility of the fixing tie provides even in difficult conditions, such as vibrations, a secure grip and protects the cables or bundles.
    Colour Black (BK)
    Fixation Method Omega Clip
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Pack Cont. 500pcs.
    Package Content packed in bag
    PART DESCRIPTION DTC10-13X14-S-PA66HIRHS-BK
    Product Family DTC - Double Tube Clip, rotatable 360°
    Product Group Fixing elements for tubes and harnesses
    Country of Origin CN
    GTIN-13 / EAN 4031026520315
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
