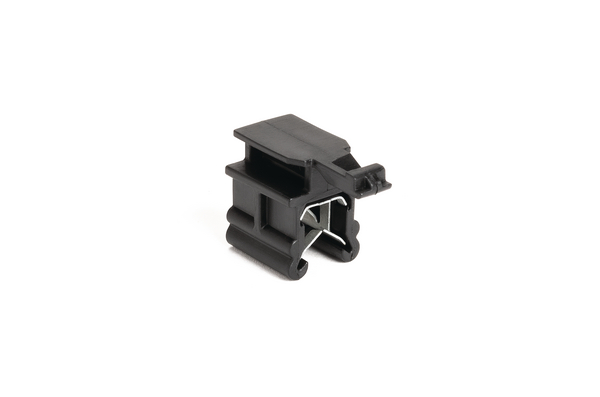

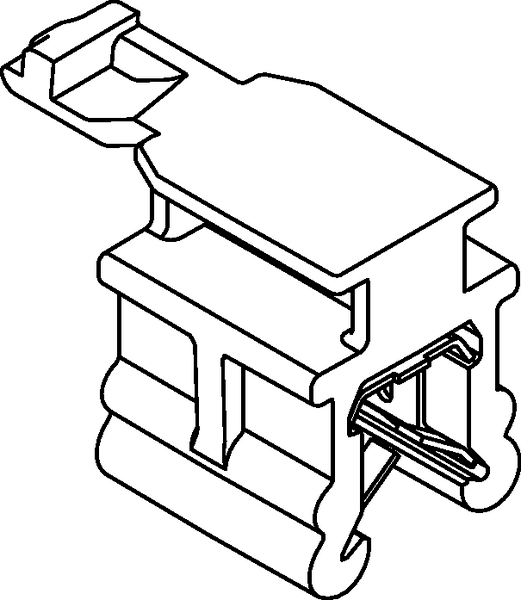

Connector clip, EWCAP-005-11, black, 3000Carton
Art.-No. 151-03112 | EC55CC11-PA66HIRHSUVR5-BK |

Copied

    • Simply push per hand onto a plastic edge
    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable
    Show more
    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Edge Clip
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised, proprietary blend (PA66HIRHSUVR5)
    PART DESCRIPTION EC55CC11-PA66HIRHSUVR5-BK
    Pack Cont. 3000Carton
    Package Content packed in box
    Type EC55CC11
    Variant 1.0 - 3.0 mm Edge

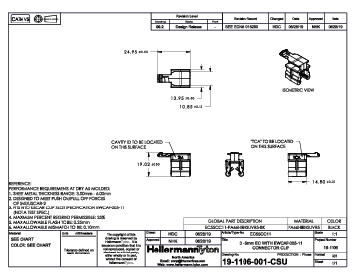

    Height (H) 19.02mm
    Length (L) 24.95mm
    Panel Thickness max. 3.0 - 6.0mm
    UV-Stabilised Yes
    Width (W) 14.8mm
    for Panel Thickness min - max 3 - 6 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026634371
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.843kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
