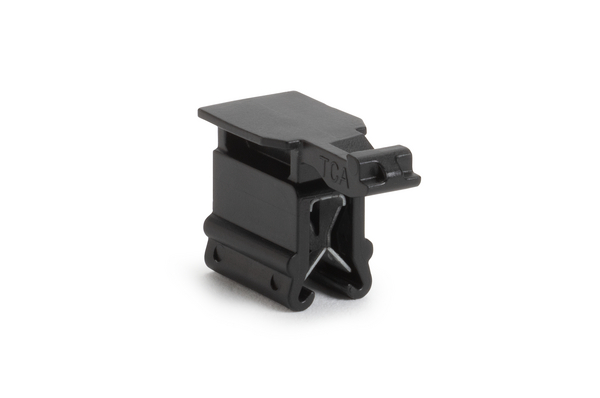

Connector clip, EWCAP-005-11, black, 7000pcs.
Art.-No. 151-04083 | EC6CC11-PA66HIRHSUV-BK

Copied
  • Simply push per hand onto a plastic edge
  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • Integrated metal clamp holds clip firmly in place
  • Clamp consists of double tempered spring steel
  • Ideal for applications where holes or adhesives are not suitable
Application Connector clip for edges, for fastening cables and wires in places where screwing or adhering is not possible.
Colour Black (BK)
Fixation Method Edge Clip
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION EC6CC11-PA66HIRHSUV-BK
Package Content 7000pcs.
Package Content packed in carton
Type EC6CC11
UV-Stabilised Yes
Variant 1.0 - 3.0 mm Edge

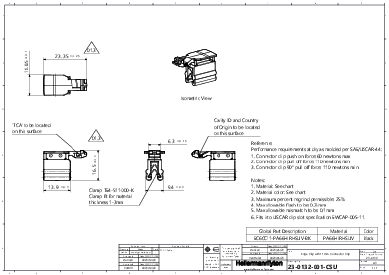

Height (H) 16.5mm
Length (L) 23.4mm
Panel Thickness max. 1.0 - 3.0mm
Width (W) 9.4mm
for Panel Thickness min - max 1 - 3 mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin MX
GTIN-13 / EAN 4031026733975
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.20479m
Packaging 3 - Length (m) 0.5159375m
Packaging 3 - Qty 7000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0332
Packaging 3 - Weight (kg) 7.7kg
Packaging 3 - Width (m) 0.314325m
Packaging 4 - Qty 280000
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
