01/08/2025

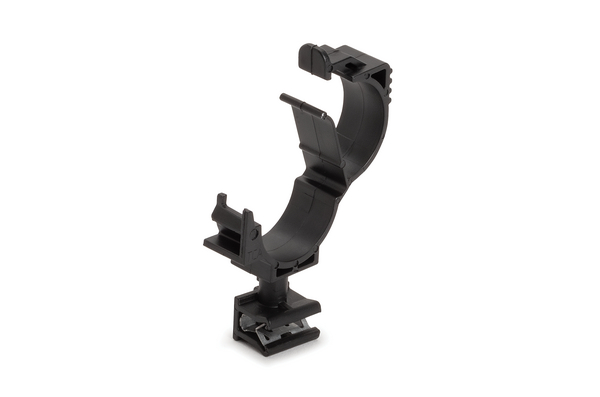

ECF90LOC15-19-PA66HIRHSUVR5/PA66HIRHSUV-BK
Art.-No. 156-02872 | ECF90LOC15-19-PA66HIRHSUVR5/PA66HIRHSUV-BK |

Copied

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Edge Clip
    Key product features rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised, proprietary blend (PA66HIRHSUVR5), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION ECF90LOC15-19-PA66HIRHSUVR5/PA66HIRHSUV-BK
    Package Content 1000pcs.
    Package Content packed in bag
    Type ECF90LOC15-19
    UV-Stabilised Yes
    Weight/Unit 0.01kg
    Bundle ⌀ 15.0-20.0mm
    Bundle ⌀ max. 20.0mm
    Bundle ⌀ min. 15.0mm
    Depth (D) 14.0mm
    Height (H) 64.64mm
    Height (H2) 45.4mm
    Length (L) 42.4mm
    Panel Thickness max. 1.0 - 3.0mm
    Width (W) 12.0mm
    for Panel Thickness min - max 1 - 3 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026635682
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 10.0kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
