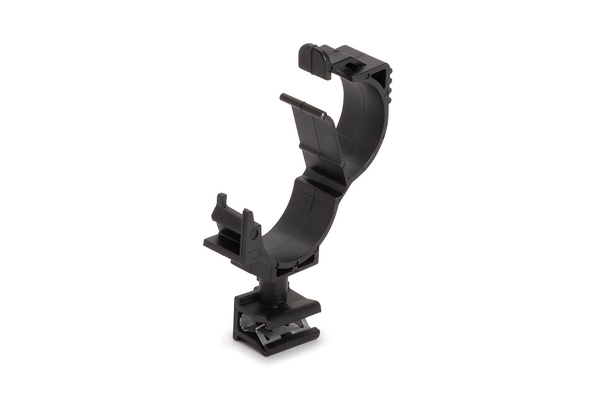

ECF90LOC20-25-PA66HIRHSUVR5/PA66HIRHSUV-BK

Art.-No. 156-02873

| ECF90LOC20-25-PA66HIRHSUVR5/PA66HIRHSUV-BK

|

Add to watchlist

Downloads

Base Data

Colour	Black (BK)
Fixation Method	Edge Clip
Key product features	rotatable
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised, proprietary blend (PA66HIRHSUVR5), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	ECF90LOC20-25-PA66HIRHSUVR5/PA66HIRHSUV-BK
Package Content	1000pcs.
Package Content packed in	bag
Type	ECF90LOC20-25
UV-Stabilised	Yes

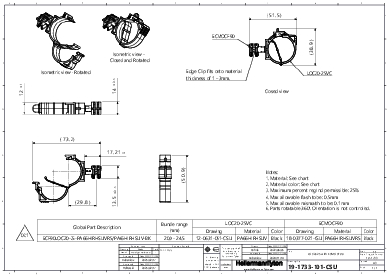

Product Dimensions

Bundle ⌀	20.0-25.0mm
Bundle ⌀ max.	25.0mm
Bundle ⌀ min.	20.0mm
Depth (D)	14.0mm
Height (H)	73.2mm
Height (H2)	51.51mm
Length (L)	38.91mm
Panel Thickness	1.0 - 3.0mm
Width (W)	12.0mm
for Panel Thickness min - max	1 - 3 mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026635699
Packaging 1 - Qty	2000
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Qty	1000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Weight (kg)	5.5kg
Packaging 3 - Width (m)	0.3984625m
Packaging 4 - Qty	30000

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
