EWCAP7FT6TURNSTOP-PA66HIRHS


Art.-No. 151-02053

| EWCAP7FT6TURNSTOP-PA66HIRHS

 |

Copied
898919

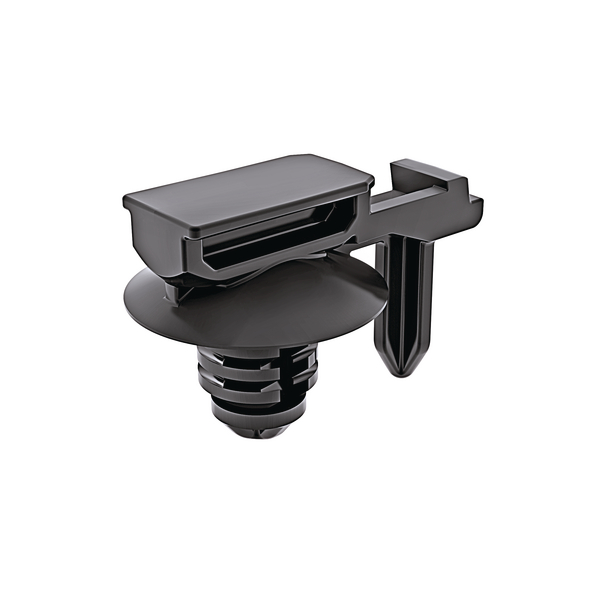

Connector Clips are available for many different connector types and fixing varieties.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Add to watchlist
    Downloads CAD-Download
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION EWCAP7FT6TURNSTOP-PA66HIRHS
    Package Content 2000pcs.
    Package Content packed in bag
    Type EWCAP7FT6TURNSTOP
    Type of connection USCAR7
    Typical Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Weight/Unit 0.000922kg

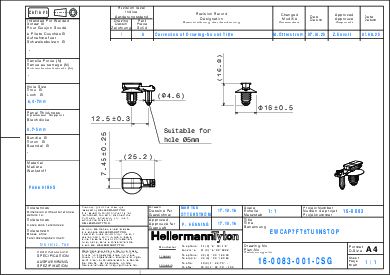

    Height (H) 16.8mm
    Length (L) 25.1mm
    Panel Thickness 0.7-5.0mm
    Width (W) 16.0mm
    for Hole ⌀ (FH) 6.4 - 7.0 mm
    for Panel Thickness min - max 0.7 - 5 mm
    ELV compliant (Article 4 - 2) Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026584591
    Packaging 3 - Height (m) 0.22m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0489m³
    Packaging 3 - Weight (kg) 8.081kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.244m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 160000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.194m³
    Packaging 4 - Weight (kg) 183.62kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
