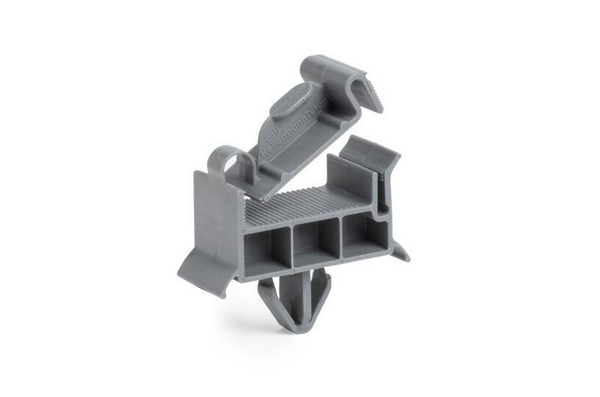

Flat Ribbon Clamp
Art.-No. 151-04767 | FC1.2AH-PA66HIRHS-GY

Copied

    • Adjustable height feature allows the clamp to close to the exact height of the ribbon cable.
    • Releasable for easy access to cables when necessary.
    • Arrowhead allows for fast and easy push-in installation with an audible click.
    • 0.5" stand-off allows clearance for flat ribbon cable to safely route away from the surface.
    Add to watchlist
    Downloads
    Colour Grey (GY)
    Description HellermannTyton's flat ribbon clamps route, protect, and secure flat ribbon cables without damage to sensitive wires and cables. The unique, adjustable height feature allows the clamp to close to the exact height of the ribbon cable. The releasable feature allows simple opening when access to the cable is necessary. The arrowhead makes an audible click when fully seated to let installers know the part is securely installed.
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION FC1.2AH-PA66HIRHS-GY
    Package Content 50
    Package Content packed in carton
    Product Family Flat Ribbon Clamp with Arrowhead
    Product Group Flat Ribbon Clamp
    Type FC1.2AH
    UV-Stabilised No
    For Cable Width Max (imperial) 1.2"
    For Cable Width max. 30.48mm
    Height (H) 43.8mm
    Length (L) 47.0mm
    Length (L2) 38.1mm
    Offset Length 12.0mm
    Panel Thickness 2.47 - 2.75mm
    Width (W) 19.05mm
    Width (W2) 10.6mm
    for Hole ⌀ (FH) 10.86 - 11.36 mm, 11.38 - 11.64 mm (hexagonal)
    for Panel Thickness min - max 2.5 - 2.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin CN
    GTIN-13 / EAN 4031026790466
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    UNSPSC Key 31162305
