Cable clip for adhesive use

Art.-No. 154-00019

| FCC25-PVC-GY

|

130100 self adhesive mount for flat cables.

Self adhesive mount with integrated clamp for holding flat cables
Manufactured from PVC

Add to watchlist

Downloads

More products in this product group:

Mount for flat cables, self adhesive

Base Data

Application	Self adhesive clip for holding flat cables.
Colour	Grey (GY)
Fixation Method	Pasting / Stick
Material	Polyvinylchloride (PVC)
PART DESCRIPTION	FCC25-PVC-GY
Package Content	100pcs.
Package Content packed in	bag
Product Family	FCC Series
Product Group	Mount for flat cables, self adhesive
Short Description	Flat cable clip 25x25 mm, self adhesive, PVC, grey
Type	FCC25
UV-Stabilised	No
Variant	Closed
Weight/Unit	0.0029kg

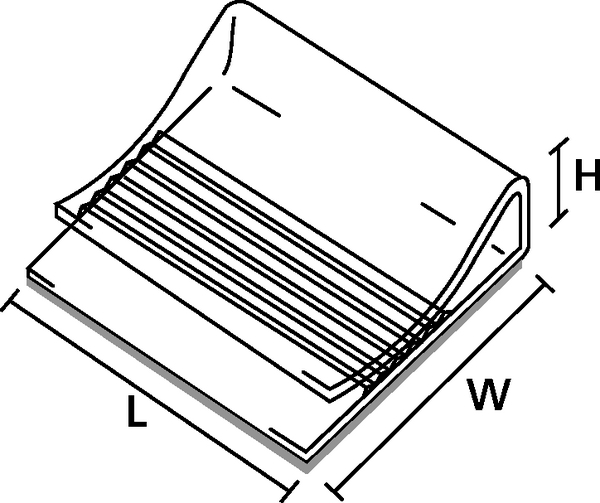

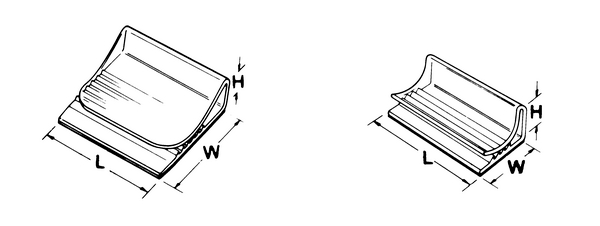

Product Dimensions


Height (H)	9.5mm
Length (L)	25.0mm
Length (L2)	21.0mm
Wall (WT)	1.1mm
Wall (WT2)	1.3mm
Width (W)	25.0mm

Specifications

Adhesive	Rubber-based foam tape
Adhesive Operating Temperature	-10 °C to +50 °C
ELV compliant (Article 4 - 2)	Yes
Hazardous Goods	No
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	BR
Customs Number	39269097
GTIN-13 / EAN	7890176002600
Packaging 1 - Qty	100
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	0.290001kg
Packaging 3 - Height (m)	0.26m
Packaging 3 - Length (m)	0.48m
Packaging 3 - Qty	5000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0474m³
Packaging 3 - Weight (kg)	14.96005kg
Packaging 3 - Width (m)	0.38m
Packaging 4 - Height (m)	1.184m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	80000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.137m³
Packaging 4 - Weight (kg)	261.36kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
