Flexible mounts with cable clip, self-adhesive

Art.-No. 151-03878

| FMB3RB5APT-A-PA66HIRHS-BK

|

Self adhesive one piece fixing clips FMB3RB5APT-A

Flexible mount for round and angled surfaces
One-piece self adhesive mount for quick and easy installation
Can be used without cable ties offering process optimization
Designed to hold wires, cables or hoses
FMB mounts with homogeneous system of acrylic adhesive
Innovative fixing solution for high and low energy surfaces
Protection foil with finger lift for easy peel off

Add to watchlist

Downloads

More products in this product group:

Flexible mounts with cable clip, self-adhesive

This product is part of:

Sample_Pack_Wire_Harness

Base Data

Application	FlexTack cable tie mounts can be successfully applied to a variety of high- and low-energy surfaces such as glass, metals (including painted, varnished or powder-coated surfaces) as well as plastics. FlexTack provides a reliable fixing solution where it is impractical to use screws or bolts. The unique design in combination with the special acrylate adhesive makes professional cable management easy.
Colour	Black (BK)
Fixation Method	adhesive
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	FMB3RB5APT-A-PA66HIRHS-BK
Package Content	500pcs.
Package Content packed in	bag
Product Family	FlexTack-Series FMB for round and angled surfaces
Product Group	Flexible mounts with cable clip, self-adhesive
Type	FMB3RB5APT-A
Weight/Unit	0.00081kg

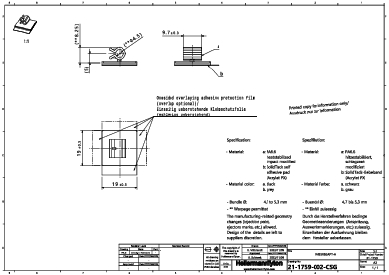

Product Dimensions

Attach to ⌀	4.7-5.3
Bundle ⌀	4.7-5.3mm
Bundle ⌀ max.	5.3mm
Bundle ⌀ min.	4.7mm
Height (H)	8.25mm
Length (L)	19mm
Width (W)	19.0mm

Specifications

Adhesive	Acrylate with base of acrylic foam
ELV compliant (Article 4 - 2)	Yes
Flammability	UL 94 V2 (excluding adhesive)
Hazardous Goods	No
Operating Temperature	-40 °C to +90 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	PL
Customs Number	39269097
GTIN-13 / EAN	4031026705750
Packaging 1 - Height (m)	0.04m
Packaging 1 - Length (m)	0.25m
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0022m³
Packaging 1 - Weight (kg)	0.41398kg
Packaging 1 - Width (m)	0.22m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
