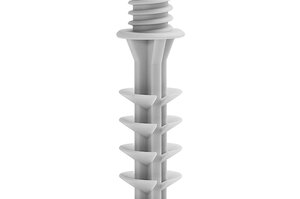

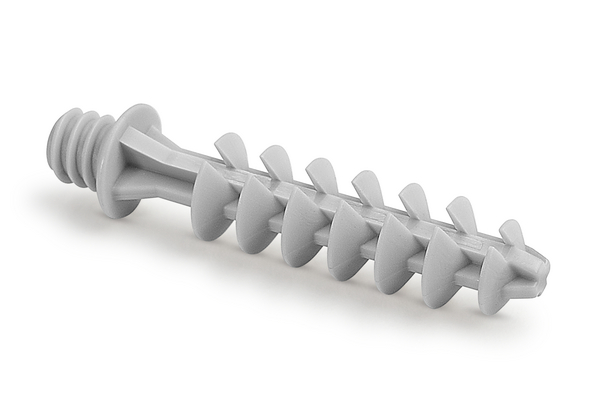

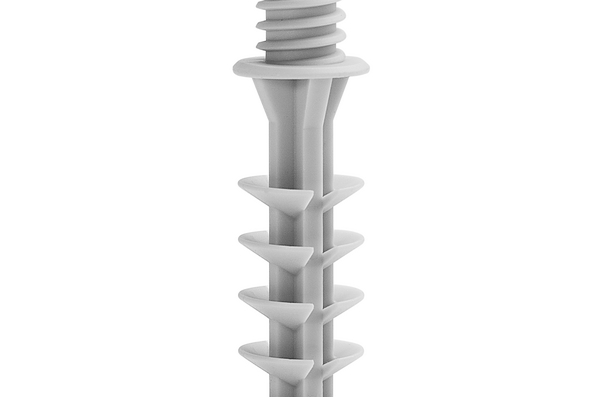

Wall plug FNTLOK01 is compatible with FNT1635 tie. Easy to assemble.

Art.-No. 151-04251

| FNTLOK01-PA66HIRUV-GY

|

Wall plug FNTLOK01 compatible with FNT1635 tie
Wall plug adapted for drilled hole (diameter 8 mm)
Color: gray

Add to watchlist

Downloads

More products in this product group:

Fast'N'Tube ®

Base Data

Colour	Grey RAL 7035 (RAL7035)
Material	Polyamide 6.6, high impact modified, UV-stabilised (PA66HIRUV)
PART DESCRIPTION	FNTLOK01-PA66HIRUV-GY
Package Content	100pcs.
Package Content packed in	box
Product Group	Fast'N'Tube ®
Short Description	Wall plug FNTLOK01 is compatible with FNT1635 tie. Easy to assemble.
Type	FNTLOK01
Typical Application	FNTLOK01 wall plug is fully compatible with FNT1635 tie and suitable to maintain electrical conduits.
UV-Stabilised	Yes
Weight/Unit	0.0011kg

Product Dimensions

⌀ (D2)	11.8mm
Diameter (D)	9.2mm
Length (L)	44.3mm
Length (L2)	37.1mm
for Hole ⌀ (FH)	8.0 mm
for Panel Thickness min - max	- 37.1

Specifications

Flammability	UL 94 HB
Halogen-free	Yes
Hazardous Goods	No
Limited Fire Hazard	No
Operating Temperature	-40 °C to +85 °C, (+105 °C, 500 h)
PEP File Link (FR)	Link
ROHS compliant	Yes
Reusable (Yes/No)	No
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	FR
GTIN-13 / EAN	4031026745077
Packaging 1 - Height (m)	0.088m
Packaging 1 - Length (m)	0.122m
Packaging 1 - Qty	100
Packaging 1 - Type	box
Packaging 1 - Volume (m³)	0.001041392m³
Packaging 1 - Weight (kg)	0.203kg
Packaging 1 - Width (m)	0.097m
Packaging 3 - Height (m)	0.2m
Packaging 3 - Length (m)	0.6m
Packaging 3 - Qty	2000
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.048m³
Packaging 3 - Weight (kg)	4.737kg
Packaging 3 - Width (m)	0.4m
Packaging 4 - Height (m)	1.3m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	40000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.248m³
Packaging 4 - Weight (kg)	119.74kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162305
