Fixing slider for connectors, T=2.5mm, red, 2000pcs.
Art.-No. 151-02308 | FSB2.5-PBTGF30FR-RD |

Copied

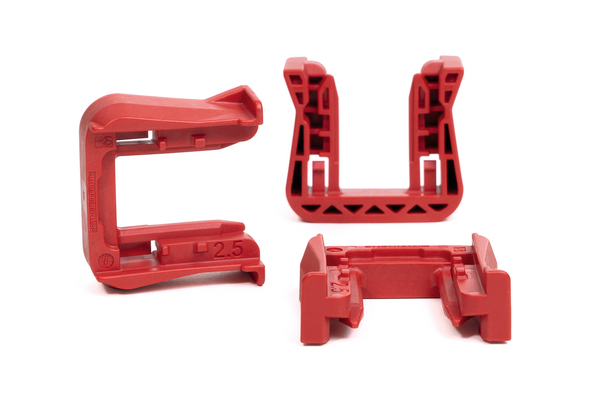

Fixing Slider (V0)
Backshells and IWS Convoluted tube.
Backshells and Fixing slider applicated.
Female Connector with Backshell and convoluted tube will be attached to the panel.
The fixing slider is going to be attached to the connector.
The fixing slider is pushed onto the connector.
Fixing slider simply pushed onto the connector and hols securely on the panel.

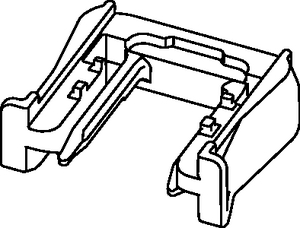

Fixing Slider Top View.
Fixing Slider Front View.

    • Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm)
    • Panel thickness is marked on the slider
    • Permanent fixation of the connectors in the mounting hole by using the slider
    • These parts are also available in V0 material (flame retardent) e.g. for public transport
    • Fixing slider fit for the Aptiv connector XS and SP series
    Add to watchlist
    Downloads
    Application The slider is used to keep the plugs firmly and vibration-proof in place, even when movement acts on it.
    Colour Red (RD)
    Material Polybutylene Terephthalate glass-fibre reinforced, flame retardant (PBTGF30FR)
    PART DESCRIPTION FSB2.5-PBTGF30FR-RD
    Package Content 2000pcs.

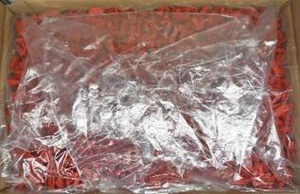

    Package Content packed in bag
    Product Family Fixing Slider B, 2.5 mm
    CTCS-series
    Product Group Connector Accessory
    Fixing Slider, Group B
    Short Description Fixing slider for connectors PBTGF30FR RD
    Type FSB2.5
    Weight/Unit 0.00575kg
    Height (H) 13.0mm
    Length (L) 31.9mm
    Panel Thickness 2.5mm
    Width (W) 36.0mm
    Width (W2) 14.1mm
    for Panel Thickness min - max 2.5 - 2.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026605296
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 11.565411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 12.165411kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 312.96kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
