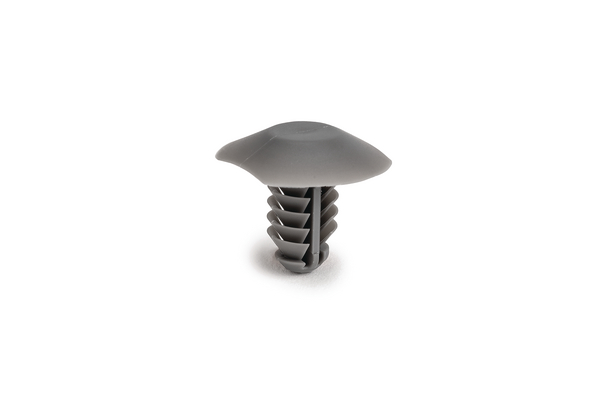

Blind plug, ⌀6.1 - 6.9 mm, T=0.6 - 5.5mm, grey, 5000pcs.

Art.-No. 151-02958

| FT6.5 Plug-PA66HIRHS-GY

|

Easy assembly without the need of a tool
Disc of the part covers the hole and minimises ingress of dust, dirt and water
Standard geometry for example fir tree or arrowhead

Add to watchlist

Downloads

More products in this product group:

Blind Plugs

Base Data

Application	Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Parts are even used for optical reasons.
Colour	Grey (GY)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	FT6.5 Plug-PA66HIRHS-GY
Package Content	5000pcs.
Package Content packed in	bag
Product Group	Blind Plugs
Type	FT6.5 Plug
UV-Stabilised	No

Product Dimensions

Fixing Hole Shape	Circular
Height (H)	15.40mm
Hole Depth	0.6mm
Hole Depth	5.5mm
Length (L)	18.60mm
Panel Thickness	0.6 - 5.5mm
Width (W)	15.70mm
for Hole ⌀ (FH)	6.1 - 6.9 mm
for Panel Thickness min - max	0.6 - 5.5 mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
Operating Temperature, 1000h	+160 °C
Operating Temperature, 5000h	+125 °C
Operating Temperature, 500h	+165 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


Country of Origin	US
GTIN-13 / EAN	4031026725598
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.1397m
Packaging 3 - Length (m)	0.51276m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0223m³
Packaging 3 - Width (m)	0.31115m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162312
