20/06/2025

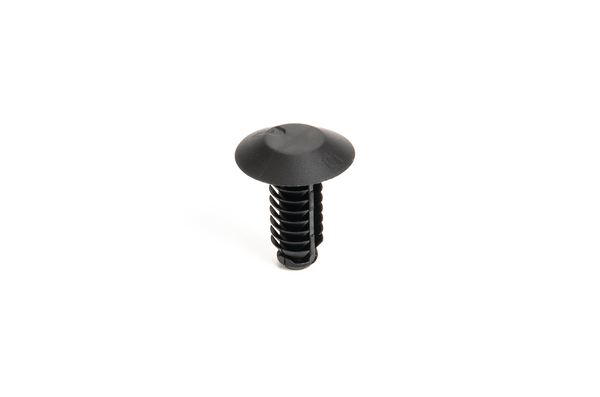

Blind plug, ⌀6.1 - 6.7 mm, T=0.6 - 12.5mm, black, 5000pcs.
Art.-No. 151-03252 | FT6.5SDLGPLUG-PA66HIRHSUV-BK |

Copied

    • Easy assembly without the need of a tool
    • Disc of the part covers the hole and minimises ingress of dust, dirt and water
    • Standard geometry for example fir tree or arrowhead
    Add to watchlist
    Downloads
    Application Products were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Parts are even used for optical reasons.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION FT6.5SDLGPLUG-PA66HIRHSUV-BK
    Pack Cont. 5000pcs.
    Package Content packed in bag
    Product Group Blind Plugs
    Type FT6.5SDLGPLUG
    Disc ⌀ 17mm
    Fixing Hole Shape Circular
    Height (H) 21.27mm
    Length (L) 7.8mm
    Panel Thickness max. 0.6 - 12.5mm
    UV-Stabilised Yes
    Weight/Unit 0.01kg
    Width (W) 7.80mm
    for Hole ⌀ (FH) 6.1 - 6.7 mm
    for Panel Thickness min - max 0.6 - 12.5 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026646534
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Weight (kg) 50.0kg
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 31162312
