Connector clip for hole (round), black, 500pcs.
Art.-No. 155-43702 | FT6S-Y-CONN-TS-PA66HIRHS-BK

Copied
Connector Clips are available for many different connector types and fixing varieties.

    • HellermannTyton connector clips provide a simple and easy method for mounting connectors to a mounting surface in a variety of applications.
    • Detailed designs include anti-rattle disc features, anti-rotation oval fir trees, and clamps for mounting on edges.
    • HellermannTyton offers an assortment of connector clips that are available for a variety of connector slot designs found on most of the largest global connector manufacturers.
    Add to watchlist

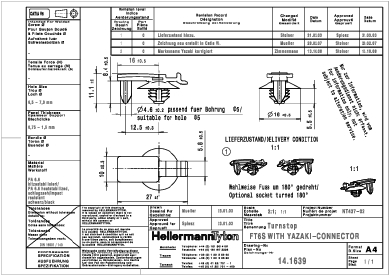

    Downloads CAD-Download
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Color Black (BK)
    Description Connector Clip; Hole Dia. 6.5-7.0mm; Panel 0.75-1.5mm/ PA66HIRHS; Black; 500/Pack
    PART DESCRIPTION FT6S-Y-CONN-TS-PA66HIRHS-BK
    Packaging Type bag
    Part No. 155-43702
    Product family Connector Clips
    Product family Connector Accessory
    Type FT6S-Y-CONN-TS
    Disc Diameter (metric) 16.0mm
    Fixation Method Fir Tree
    Height (metric) 11.1mm
    Length (metric) 27.0mm
    Max. Panel Thickness (metric) 1.5mm
    Min. Panel Thickness (metric) 0.75mm
    Mounting Hole Diameter (metric) 6.5 - 7.0 mm
    Mounting Hole Diameter 2 (metric) 5.0mm
    Width (metric) 16.0mm
    Flammability UL 94 HB
    Material PA66HIRHS
    Material Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
    Operating Temperature -40°F to +221°F (-40°C to +105°C)
    REACH Conformity Yes
    ROHS compliant Yes
    Customs Number (Schedule B) 3926909988
    Packaging 1 - Weight (kg) 0.391862kg
    Pkg. Qty. 500
    Pkg. Qty. 500Pieces
