10/05/2024

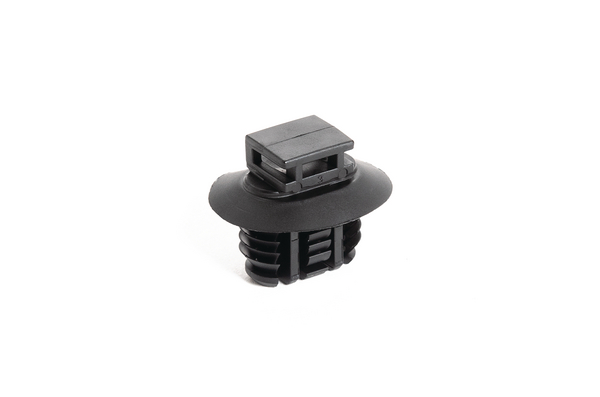

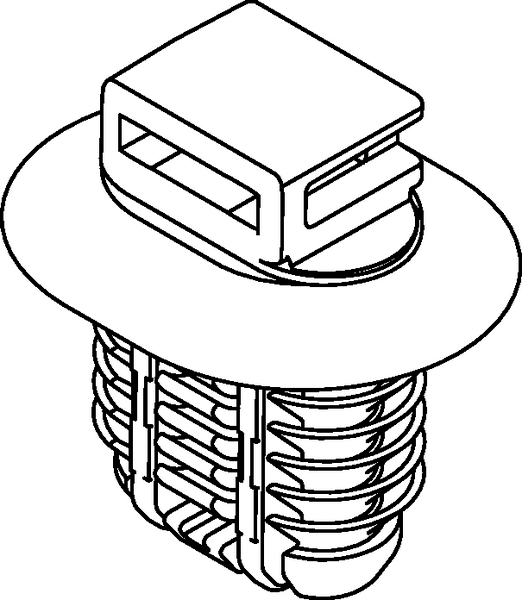

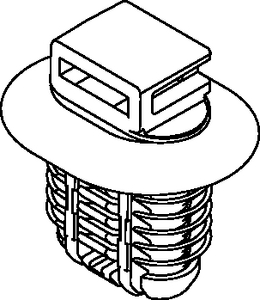

Cable clip, Ø9.0 x 17.0 mm, black, 3000pcs.
Art.-No. 151-01324 | FT9X17LG-PA66HIRHSUV-BK | Details

Add to watchlist

Base Data

Colour	Black (BK)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont.	3000pcs.
Package Content packed in	carton
PART DESCRIPTION	FT9X17LG-PA66HIRHSUV-BK

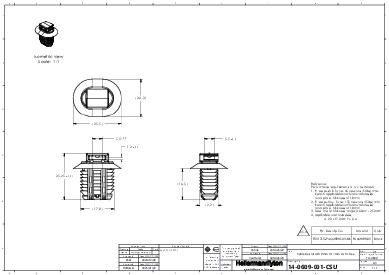

Product Dimensions

for Hole ∅ (FH)	9.0 x 17.0 mm
for Panel Thickness min - max	0.6 - 9.5 mm
Height (H)	25.25mm
Height (H2)	16.5mm
Length (L)	25.5mm
Weight/Unit	0.0022kg
Width (W)	20.3mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	YES
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
Specifications
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	Yes

Logistics and Packaging


Country of Origin	US
Customs Number	39269097
GTIN-13 / EAN	4031026513065
Packaging 1 - Height (m)	0.14m
Packaging 1 - Length (m)	0.498m
Packaging 1 - Qty	3000
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.02161m³
Packaging 1 - Weight (kg)	6.600001kg
Packaging 1 - Width (m)	0.31m
Packaging 3 - Height (m)	0.20954999999999998m
Packaging 3 - Length (m)	0.517525m
Packaging 3 - Qty	3000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Weight (kg)	7.210001kg
Packaging 3 - Width (m)	0.3175m
Packaging 4 - Height (m)	1.194m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	60000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.146m³
Packaging 4 - Weight (kg)	165.2kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	39121717
