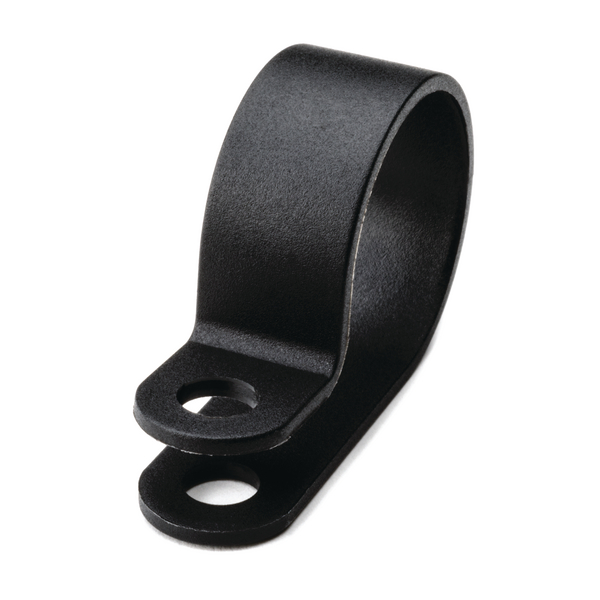

P-clamp closed, Ø5.2 mm, Dmax=22.0mm, black, 1000pcs.
Art.-No. 211-60140 | H13P-PA66HS-BK |  Details

P-Clamps H1P - H18P in different dimensions.

    • Manufactured from Polyamide
    • Good temperature resistance and high strength
    • Wide range of sizes for every application
    • Can be used without cable ties
    Add to watchlist
    Downloads
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Black (BK)
    Fixation Method screw-hole
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Pack Cont. 1000pcs.
    Package Content packed in bag
    PART DESCRIPTION H13P-PA66HS-BK
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Variant Closed
    Bundle Diameter max (metric) 22.0mm
    Bundle ∅ 22.0mm
    Fixing Hole Centres (F) 20.5mm
    Fixing Hole Centres (F) 0.81"
    for Hole ∅ (FH) 5.2 mm
    Nominal ∅ 22.0mm
    Nominal ∅ 0.88"
    Radius (R) 2.0mm
    Radius (R) 0.08"
    Wall (WT) 1.5mm
    Wall (WT) 0.059"
    Width (W) 12.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +105 °C
    Specifications
    UV-Stabilised No
    Country of Origin DE
    GTIN-13 / EAN 4031026231662
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 2.0000kg
    Packaging 2 - Qty 1
    Packaging 3 - Qty 3000
    Packaging 4 - Length (m) 1.20m
    Packaging 4 - Type pallet
    Packaging 4 - Width (m) 0.80m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
