Cable clip for hole (hex)/for hole (round), T=0.5 - 3.5mm, ⌀6.35 mm (hexagonal)/M8 x 1.25 Threaded, Dmin=11.0mm, Dmax=15.0mm

Art.-No. 151-04197

| HC11-15FT6.5-PA66HIRHS-BK

|

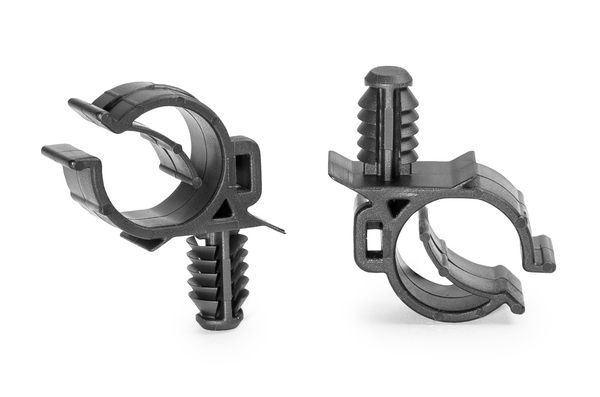

Fixing element with fir tree and harness clip 11-15 mm

cable clip with fir tree mount for oval holes
Easy to install without the need for a tool
Cable bundles can be applicated afterwards
For direct fixation
Removable

Add to watchlist

Downloads

More products in this product group:

Cable clip for oval hole

Base Data

Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour	Black (BK)
Description	Cable clip, oval hole, with pipe / tube holder, high impact modified, heat stabilised, black
Fixation Method	Fir tree for round holes
Key product features	for direct fixation, removable
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	HC11-15FT6.5-PA66HIRHS-BK
Package Content	1000pcs.
Package Content packed in	bag
Product Family	with pipe / tube holder
Product Group	Cable clip for oval hole
Short Description	Cable clip, oval hole, with pipe / tube holder, high impact modified, heat stabilised, black
Type	HC11-15FT6.5
Weight/Unit	0.001793kg

Product Dimensions

Bundle ⌀	11.0-15.0mm
Bundle ⌀ max.	15.0mm
Bundle ⌀ min.	11.0mm
Panel Thickness	0.5 - 3.5mm
for Hole ⌀ (FH)	6.35 mm (hexagonal), M8 x 1.25 Threaded, 6.1 - 7.0 mm
for Panel Thickness min - max	0.5 - 3.5 mm

Specifications

ELV compliant (Article 4 - 2)	Yes
Halogen-free	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	PL
Customs Number	39269097
GTIN-13 / EAN	4031026741154
Packaging 1 - Height (m)	0.075m
Packaging 1 - Length (m)	0.45m
Packaging 1 - Qty	1000
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.01333125m³
Packaging 1 - Weight (kg)	1.822135kg
Packaging 1 - Width (m)	0.395m
Packaging 3 - Height (m)	0.204m
Packaging 3 - Length (m)	0.591m
Packaging 3 - Qty	4000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.048m³
Packaging 3 - Weight (kg)	8.25454kg
Packaging 3 - Width (m)	0.398m
Packaging 4 - Height (m)	1.204m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	80000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.156m³
Packaging 4 - Weight (kg)	187.08kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	39121702
