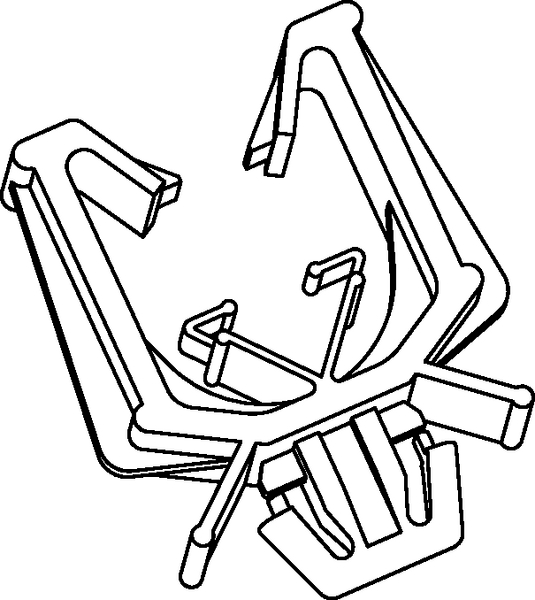

Cable clip for hole (oval), T=0.5 - 3.5mm, ⌀6.2 x 12.2 mm, Dmin=12.0mm, Dmax=16.0mm
Art.-No. 151-00423 | HC140SFT62x122-PA6HIR-BK |

Push and click closure for fixing of wires
Clip is clicked into a specific hole
AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud

More products in this product group:

Fixing Elements for Tubes and Harnesses with Automatic Locking Feature >

Base Data

Application	Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries.
Colour	Black (BK)
Material	Polyamide 6, high impact modified (PA6HIR)
PART DESCRIPTION	HC140SFT62x122-PA6HIR-BK
Package Content	1200pcs.
Package Content packed in	bag
Product Family	AHC-Series
Product Group	Fixing Elements for Tubes and Harnesses with Automatic Locking Feature
Short Description	Harness Clip, open, oval hole 6.2 x 12.2 mm, arrow head, high impact modified, black
Type	HC140SFT62x122

Product Dimensions


Bundle ⌀	12.0-16.0mm
Bundle ⌀ max.	16.0mm
Bundle ⌀ min.	12.0mm
Height (H)	26.0mm
Height (H2)	36.5mm
Length (L)	30.0mm
Panel Thickness max.	0.5 - 3.5mm
Width (W)	14mm
for Hole ⌀ (FH)	6.2 x 12.2 mm
for Panel Thickness min - max	0.5 - 3.5 mm

Downloads

Specifications

Flammability	UL 94 HB
Operating Temperature	-40 °C to +80 °C, (+105 °C, 500 h)

Logistics and Packaging

Country of Origin	FR
GTIN-13 / EAN	4031026710914

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162305
