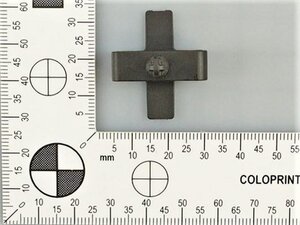

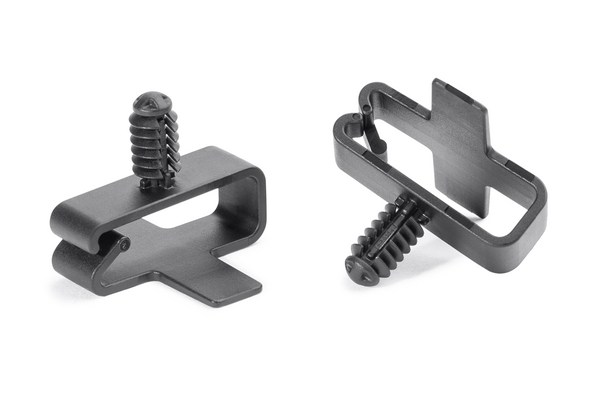

Cable clip for hole (round), ⌀M6 x 1

Art.-No. 151-03535

| HC18x7M6-PA66HIRHS-BK

|

For fixing and bundling convoluted tubes and pipes
Suitable for nearly every application

Add to watchlist

Downloads

Base Data

Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour	Black (BK)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	HC18x7M6-PA66HIRHS-BK

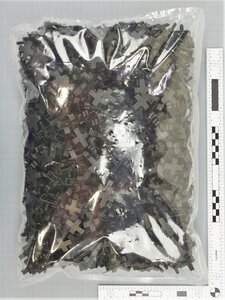

Package Content	1000pcs.
Package Content packed in	bag
Type	HC18x7M6
Weight/Unit	0.001141kg

Product Dimensions

Attach to ⌀	18 x 7
Height (H)	21.9mm
Height (H2)	11.4mm
Length (L)	26.0mm
Width (W)	30.0mm
for Hole ⌀ (FH)	M6 x 1

Specifications

ELV compliant (Article 4 - 2)	Yes
Hazardous Goods	No
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	PL
Customs Number	39269097
GTIN-13 / EAN	4031026675770
Packaging 1 - Height (m)	0.15m
Packaging 1 - Length (m)	0.3m
Packaging 1 - Qty	1000
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.01845m³
Packaging 1 - Weight (kg)	1.162815kg
Packaging 1 - Width (m)	0.41m
Packaging 3 - Height (m)	0.184m
Packaging 3 - Length (m)	0.58m
Packaging 3 - Qty	4000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0406m³
Packaging 3 - Weight (kg)	5.25126kg
Packaging 3 - Width (m)	0.38m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	96000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	148.048kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	39121702
