Cable clip, T=3.0mm, ⌀3.3 - 4.0 mm, Dmax=13mm
Art.-No. 151-03161 | HC513FT4J-PA66HSW-BK |

Copied

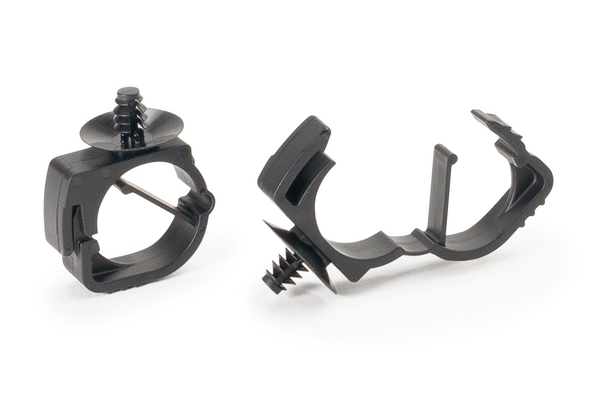

Harness Clip for round holes with Fir Tree.
Simply separate the cable wires and hear the audible click of the reopenable fastening clip.

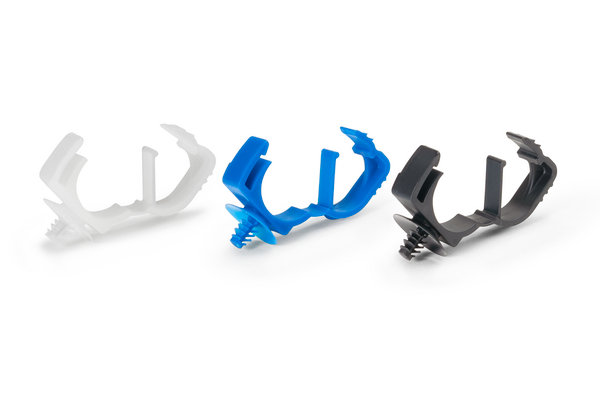

Harness Clip made from E/TFE (blue), PA66 heat stabilised and weatherresistant (natural) and PA66 (black) for round holes from 3.3 - 4.0 mm.

    • Dome-shaped support makes it difficult for dust to enter after fixed to the panel.
    • The clip part can be opened and closed, that harness can be removed during maintenance.
    • The mount design uses HT’s unique fir tree shape, which can be used for wide range of plate thicknesses.
    Add to watchlist
    Downloads
    Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
    Colour Black (BK)
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION HC513FT4J-PA66HSW-BK
    Package Content 100pcs.
    Package Content packed in bag
    Product Family Fixing Elements for Tubes and Harnesses with Fir Tree
    Product Group Holder Clip
    Type HC513FT4J
    Bundle ⌀ 13mm
    Bundle ⌀ max. 13mm
    Length (L) 38.2mm
    Panel Thickness max. 3.0mm
    Width (W) 7.0mm
    for Hole ⌀ (FH) 3.3 - 4.0 mm
    for Panel Thickness min - max 1 - 3 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +110 °C
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    Country of Origin JP
    GTIN-13 / EAN 4944387121520
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 31162305
