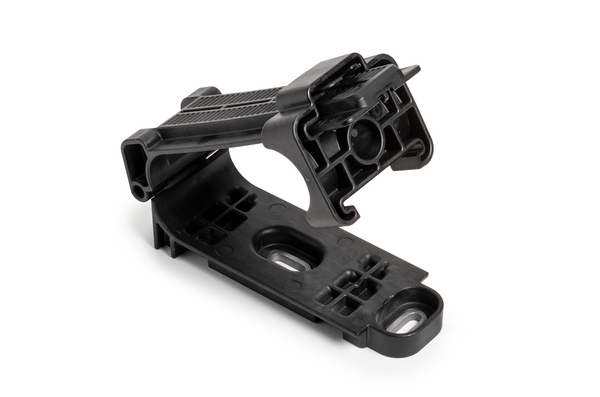

Releasable cable clip for screw fixation/with pipe/tube holder, ⌀M6, Dmax=91mm
Art.-No. 151-04629
| HSRC72-PA666V0-BK
|
Copied
- Multiple cables and tubes can be bundled in parallel
- Can be opened and closed without tools due to lever on the sliding element
- Re-openable, thus cables can be exchanged and added when required
- Can be mounted vertically or horizontally
- After being bolted, the locking slider is pushed onto the cable
- Allows a flexible accommodation of the cables with regards to the number of cables to be routed
Show more
Show less
More products in this product group:
Releasable cable clip for screw fixation/with pipe/tube holder, ⌀M6, Dmax=37mm
| Application |
Lightweight, heavy duty cable management system designed to improve wide diameter cable management for overhead gantry and renewable energy applications. Suitable for road, railway and infrastructure, the HSRC family is easy to install, V0 rated and retrofittable, utilising standard M6 bolts. The adjustable, releasable slider allows for varying cable diameters and types to be managed within a single system, with a maximum diameter of 37mm. It can be mounted vertically or horizontally. HSRC72 is also compatible with P3300 Unistrut, utilising existing HT quarter turn mounts. |
| Colour | Black (BK) |
| Description | The Hinged SRC clamp is a lightweight, adjustable solution designed for heavy duty cable management. Using standard off‑the‑shelf M6 bolts, it can be easily installed in new applications or seamlessly integrated into retrofit projects. Suitable for road, rail, and infrastructure environments, this clamps feature a lockable, releasable, and adjustable slider, allowing varying cable diameters to be managed within a single system. |
| Fixation Method | Bolt |
| Key product features | releasable, reusable, wastefree product |
| Material | Polyamide 6.6/6, V0 (PA666V0) |
| Mounting Screw Type | M6 Screw |
| PART DESCRIPTION | HSRC72-PA666V0-BK |
| Package Content | 40 |
| Package Content packed in | box |
| Product Family | Art.-No. 151-04629 HSRC72-PA666V0-BK |
| Product Group | Releasable cable clip for screw fixation/with pipe/tube holder, ⌀M6, Dmax=37mm |
| Short Description | Releasable cable clip for screw fixation/with pipe/tube holder, ⌀M6, Dmax=91mm |
| Type | HSRC72 |
| UV-Stabilised | Yes |
| UV-Stabilised Reference | Raw Material based |
| Weight/Unit | 0.201kg |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +120 °C |
| PFAS-free | Yes |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| Specifications | EN 45545-2 |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
