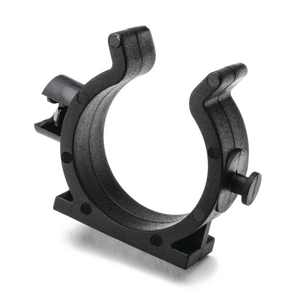

Cable clip for stud, Dmin=5.0mm, Dmax=6.0mm
Art.-No. 151-00870 | IPC5P-PA66-BK

Copied
IPC-P

    • Attach before installing pipe or hose
    • Parts labelled 'I' are interlockable for more installation options
    • Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips
    Add to watchlist
    Downloads
    Application Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.).
    Color Black (BK)
    Description These clips can be attached to the stud prior to installing the pipe or hose. The parts prefixed with an 'I' can be interlocked together giving a greater choice of installation options or mounted onto a 5 mm 'T' stud or the IAHC type of Automatic Harness Clips.
    PART DESCRIPTION IPC5P-PA66-BK
    Packaging Type bag
    Part No. 151-00870
    Product family Products for wires and hoses, Products to use on studs
    Type IPC5P
    Height (metric) 9.8mm
    Length (metric) 12.0mm
    Max. Bundle Diameter (metric) 6.0mm
    Min. Bundle Diameter (metric) 5.0mm
    Width (metric) 10.0mm
    Flammability UL 94 V-2
    Material PA66
    Material Polyamide 6.6 (PA66)
    Operating Temperature -40°F to +185°F (-40°C to +85°C)
    Packaging 1 - Weight (kg) 0.1100kg
    Pkg. Qty. 100Pieces
    Pkg. Qty. 100
