04/11/2025

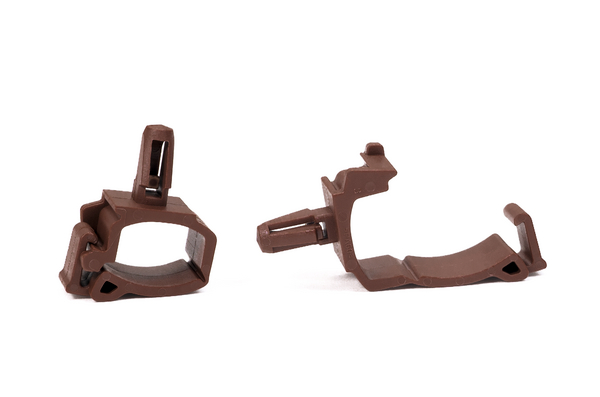

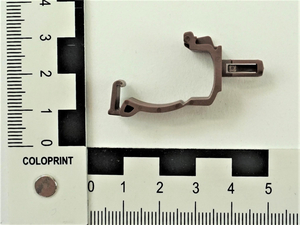

Cable clip, ⌀6.4 mm
Art.-No. 133-04836 | Kabelhalter XXL-PA66HIRHS-BN |

Copied

    • reuseable fixing element
    • replacement of cable bundle possible in case of maintenance
    • assembly by hand without a need for a tool
    • Arrowhead snapped hearable by a click when applied in the hole
    • suitable for post-installation of cable bundles
    Add to watchlist
    Downloads
    Colour Brown (BN)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION Kabelhalter XXL-PA66HIRHS-BN
    Package Content 2000pcs.
    Package Content packed in bag
    Product Family with locking function
    Product Group Fixing Element for Tubes and Pipes
    Type Kabelhalter XXL
    Weight/Unit 0.0015kg
    Height (H) 25.68mm
    Length (L) 20.63mm
    Width (W) 12.0mm
    for Hole ⌀ (FH) 6.4 mm
    for Panel Thickness min - max - 2.5
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026614687
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0384225m³
    Packaging 1 - Weight (kg) 3.043597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 6.687194kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 181.512kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
