Cable clip for hole (round), T=0.6 - 8.25mm, ⌀6.1 - 6.6 mm (hexagonal)/6.1 - 7.0 mm, Dmin=10.0mm, Dmax=14.0mm, nom⌀=10.0 - 14.0 mm

Art.-No. 151-04084

| LOC10-14FT6LG-PA612-BK

|

The 360 degree enclosure ensures the entire bundle is secure when being routed by the LOC clip.

For fixing and bundling convoluted tubes and pipes
Suitable for nearly every application

Add to watchlist

Downloads

More products in this product group:

Fixing Elements for Tubes and Pipes

Base Data

Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour	Black (BK)
Fixation Method	Fir tree for round holes
Key product features	lockable
Material	Polyamide 612 (PA612)
PART DESCRIPTION	LOC10-14FT6LG-PA612-BK
Package Content	2000pcs.
Package Content packed in	pack
Product Family	LOC-Series
Product Group	Fixing Elements for Tubes and Pipes
Type	LOC10-14FT6LG
UV-Stabilised	Yes

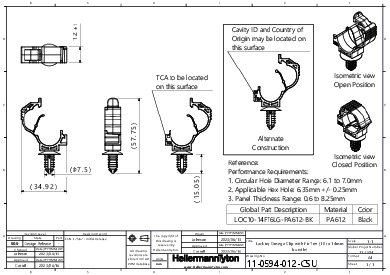

Product Dimensions

Bundle ⌀	10.0-14.0mm
Bundle ⌀ max.	14.0mm
Bundle ⌀ min.	10.0mm
Bundle Diameter Nom. (ND)	10.0 - 14.0 mm
Depth (D)	12.0mm
Height (H)	57.75mm
Length (L)	34.92mm
Panel Thickness	0.6 - 8.25mm
Width (W)	12.0mm
for Hole ⌀ (FH)	6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm
for Panel Thickness min - max	0.6 - 8.3 mm

Specifications

CE Certification	No
CSA Certified	No
Halogen-free	Yes
Operating Temperature	-40 °C to +90 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026734231
Packaging 1 - Qty	2000
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Qty	2000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Weight (kg)	5.41kg
Packaging 3 - Width (m)	0.3175m
Packaging 4 - Qty	80000

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	39121702
