Cable clip, T=0.6 - 6.75mm, ⌀9.0 x 12.0 mm, Dmin=10.0mm, Dmax=14.0mm, nom⌀=10.0 - 14.0 mm
Art.-No. 151-03902
| LOC10-14XFT9X12-PA66HIRHSUV-BK
Copied
- The 360 degree enclosure ensures the entire bundle is secure when being routed by this clip.
- Locking tab on this clip is small enough that it will not interfere with any other portion of the wire routing, but is significant enough to allow for manual disengagement if service is needed.
- Disc around the fir tree eliminates potential debris and water to enter the panel hole.
More products in this product group:
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Brand Family | LOC-Series |
| Color | Black (BK) |
| Description | The Solar Locking Clamp is ideal for fastening wire and cable bundles to panels. Its uniquely engineered fir tree holds tightly in pre-stamped holes. The locking clamp mechanism dynamically fits various bundle sizes, while an integrated cable tie saddle option on the 9x12 version allows installers to add additional cable runs. The clamp is manufactured of an impact-modified Polyamide 6.6 material for increased flexibility, heat resistance and UV stabilization to deliver years of dependable performance. It is easy to install and operate with a single hand and does not require tools, saving time and labor costs. |
| PART DESCRIPTION | LOC10-14XFT9X12-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 151-03902 |
| Product family | Products for wires and hoses |
| Short Desc. | Solar Locking Clamp with Fir Tree, 10 - 14mm Bundle Dia., 9x12mm Hole Dia., PA66HIRHSUV, Black, 100/pkg |
| Type | LOC10-14XFT9X12 |
| UV Resistant | Yes |
|
|
|
| Fixation Method | Fir Tree |

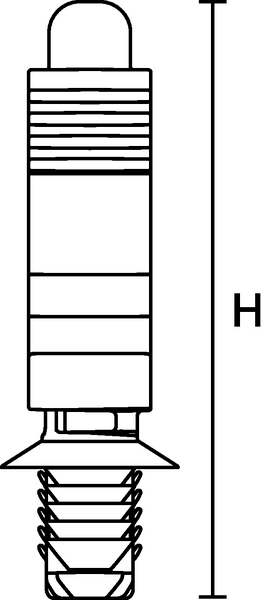

| Height (imperial) | 1.65" |
| Height (metric) | 41.95mm |

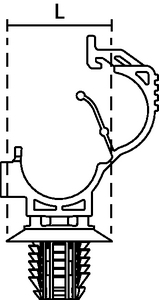

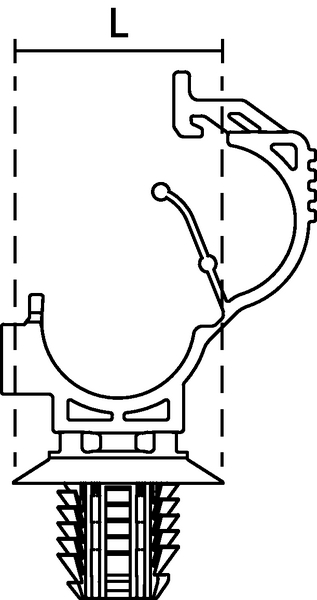

| Length (imperial) | 1.19" |
| Length (metric) | 28.43mm |
| Max. Bundle Diameter (imperial) | 0.55" |
| Max. Bundle Diameter (metric) | 14.0mm |
| Max. Mounting Hole Diameter (imperial) | 0.47" |
| Max. Panel Thickness (imperial) | 0.26" |
| Max. Panel Thickness (metric) | 6.75mm |
| Min. Bundle Diameter (imperial) | 0.39" |
| Min. Bundle Diameter (metric) | 10.0mm |
| Min. Mounting Hole Diameter (imperial) | 0.35" |
| Min. Panel Thickness (imperial) | 0.02" |
| Min. Panel Thickness (metric) | 0.6mm |
| Mounting Hole Diameter (imperial) | 0.35 x 0.47 " |
| Mounting Hole Diameter (metric) | 9.0 x 12.0 mm |
| Nominal Bundle Diameter (imperial) | 0.39 - 0.55 " |
| Nominal Bundle Diameter (metric) | 10.0 - 14.0 mm |
| Panel Thickness (imperial) | 0.02 - 0.26" |
| Panel Thickness (metric) | 0.6 - 6.75mm |
| Width (imperial) | 0.47" |
| Width (metric) | 12.0mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
LOC10-14XFT9X12-PA66HIRHSUV-BK
