Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 6.75mm, ⌀9.0 x 12.0 mm/9.0 x 14.0 mm, Dmin=10.0mm, Dmax=14.0mm, nom⌀=10.0 - 14.0 mm

Art.-No. 151-04085

| LOC1014FT9x12-PA612-BK

|

The locking clamps of the LOC-Series offer fast and easy bundling of convoluted tubes and pipes.

For fixing and bundling convoluted tubes and pipes
Suitable for nearly every application

Add to watchlist

Downloads

Base Data

Colour	Black (BK)
Fixation Method	Fir Tree for oval holes
Key product features	lockable, removable
Material	Polyamide 612 (PA612)
PART DESCRIPTION	LOC1014FT9x12-PA612-BK
Package Content	500pcs.
Package Content packed in	pack
Type	LOC1014FT9x12
Typical Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
UV-Stabilised	Yes

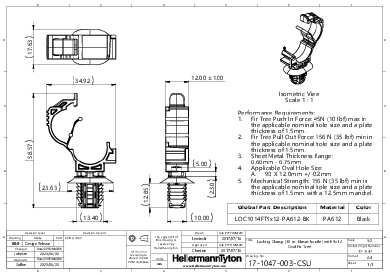

Product Dimensions

Bundle ⌀	10.0-14.0mm
Bundle ⌀ max.	14.0mm
Bundle ⌀ min.	10.0mm
Bundle Diameter Nom. (ND)	10.0 - 14.0 mm
Depth (D)	12.0mm
Height (H)	58.57mm
Hole Depth	0.6mm
Hole Depth	6.75mm
Length (L)	35.0mm
Panel Thickness	0.6 - 6.75mm
Width (W)	12.0mm
for Hole ⌀ (FH)	9.0 x 12.0 mm, 9.0 x 14.0 mm
for Panel Thickness min - max	0.6 - 6.8 mm

Specifications

CE Certification	No
CSA Certified	No
Halogen-free	Yes
Operating Temperature	-40 °C to +90 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


Country of Origin	US
GTIN-13 / EAN	4031026734224
Packaging 1 - Qty	500
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.1397m
Packaging 3 - Length (m)	0.51276m
Packaging 3 - Qty	500
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0223m³
Packaging 3 - Weight (kg)	2.15kg
Packaging 3 - Width (m)	0.31115m
Packaging 4 - Qty	28000

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	39121702
