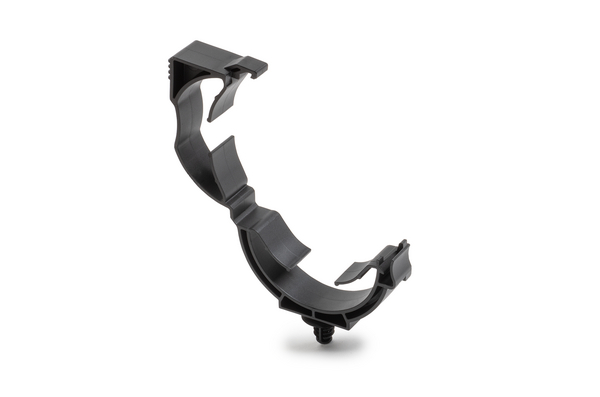

Cable clip, T=0.6 - 6.0mm, ⌀6.1 - 6.9 mm, Dmin=42.0mm, Dmax=48.0mm, nom⌀=42.0 - 48.0 mm
Art.-No. 151-04229 | LOC42-48FT6.5-PA66HIRHSUV-BK |

Copied

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist
    Downloads
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION LOC42-48FT6.5-PA66HIRHSUV-BK
    Pack Cont. 300pcs.
    Package Content packed in carton
    Type LOC42-48FT6.5
    Bundle ⌀ 42.0-48.0mm
    Bundle ⌀ max. 48.0mm
    Bundle ⌀ min. 42.0mm
    Bundle Diameter Nom. (ND) 42.0 - 48.0 mm
    Depth (D) 15.0mm
    Height (H) 108.9mm
    Length (L) 94.8mm
    Panel Thickness max. 0.6 - 6.0mm
    Width (W) 15.0mm
    for Hole ⌀ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026742854
    Packaging 1 - Type box
    Packaging 3 - Height (m) 0.0000762m
    Packaging 3 - Length (m) 0.482599999999999m
    Packaging 3 - Qty 300
    Packaging 3 - Type bag
    Packaging 3 - Volume (m³) 0m³
    Packaging 3 - Weight (kg) 4.9kg
    Packaging 3 - Width (m) 0.1016m
    Packaging 4 - Qty 12000
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
