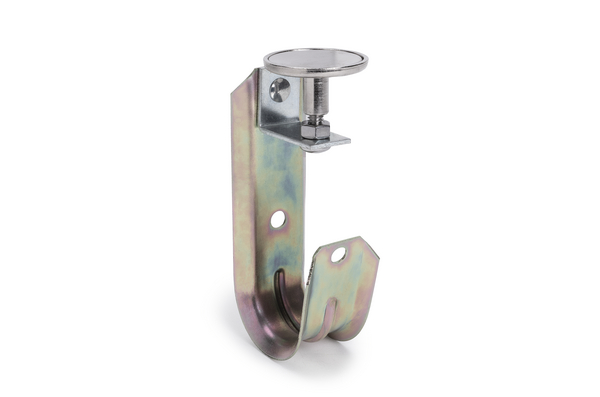

Cable clip for magnetic use, nom⌀=33.27 mm

Art.-No. 151-04039

| MAGJH90TS-NDFEB45M/ST-ML

|

Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.

Package size

10 pcs.

100 pcs.

Add to watchlist

Downloads

Base Data

Colour	Zinc-plated Metal (BV)
Fixation Method	Magnet
Magnetic pull strength (N)	400N
Magnetic pull strength (kgf)	40.79
Magnetic pull strength (lb/ft)	90lbf-ft
Material	Neodymium alloy 45M (NDFEB45M), Steel (ST)
PART DESCRIPTION	MAGJH90TS-NDFEB45M/ST-ML
Package Content	10pcs.
Package Content packed in	pack
Rotation (°)	360°
Type	MAGJH90TS
UV-Stabilised	No

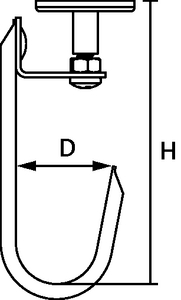

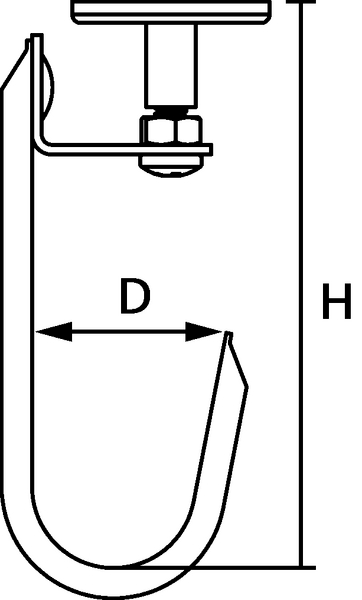

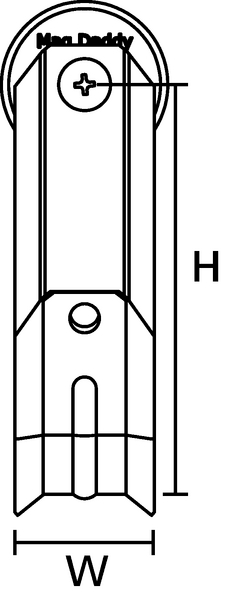

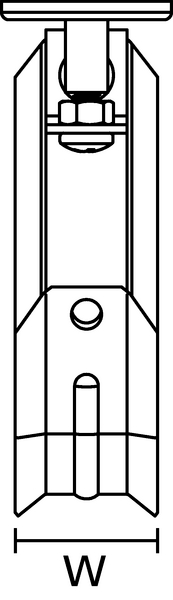

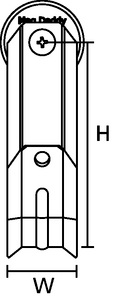

Product Dimensions

Bundle Diameter Nom. (ND)	33.27 mm
Depth (D)	39.37mm
Height (H)	114.72mm
Width (W)	33.53mm

Specifications

CE Certification	No
CSA Certified	Yes
Halogen-free	Yes
Operating Temperature	-40 °C to +80 °C
Plenum Rating	AH-2
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
	Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
UL Listed (US and Canada)	Yes
UL Listed (US)	Yes
UL Recognized (US and Canada)	No
UL Recognized (US)	No
UL-File Number	E64139

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026730356
Packaging 1 - Qty	10
Packaging 1 - Type	pack

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121703
