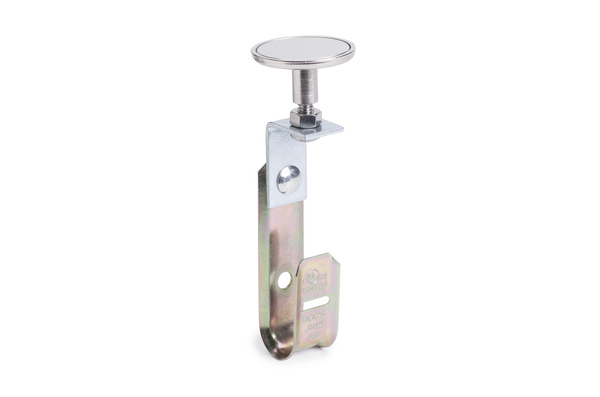

Cable clip for magnetic use, nom⌀=14.2 mm

Art.-No. 151-03656

| MAGJH90TXS-NDFEB45M/ST-ML

|

Package size

10 pcs.

100 pcs.

Add to watchlist

Downloads

Base Data

Colour	Metal (ML)
Fixation Method	Magnet
Magnetic pull strength (N)	400N
Magnetic pull strength (kgf)	40.79
Magnetic pull strength (lb/ft)	90lbf-ft
Material	Neodymium alloy 45M (NDFEB45M), Steel (ST)
PART DESCRIPTION	MAGJH90TXS-NDFEB45M/ST-ML
Package Content	100pcs.
Package Content packed in	pack
Rotation (°)	360°
Type	MAGJH90TXS
UV-Stabilised	No

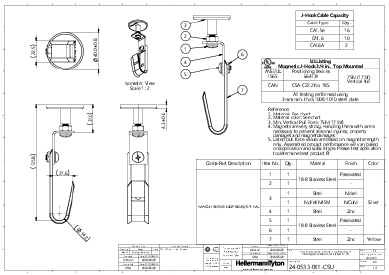

Product Dimensions

⌀ D	1.57"
Bundle Diameter Nom. (ND)	14.2 mm
Depth (D)	21.6mm
Diameter (D)	40.0mm
Height (H)	125.8mm
Width (W)	22.5mm

Specifications

CE Certification	No
CSA Certified	Yes
Halogen-free	Yes
Operating Temperature	-40 °C to +80 °C
Plenum Rating	AH-2
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026754482
Packaging 1 - Qty	100
Packaging 1 - Type	pack

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121703
