Cable clip for magnetic use, Dmax=6.0mm
Art.-No. 151-04468 | MAGRA6-PA66/NDFEBR5-BK

Copied

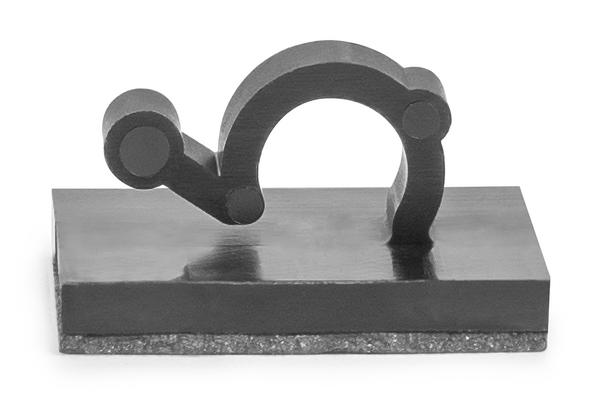

RA3-18 Series (side view)

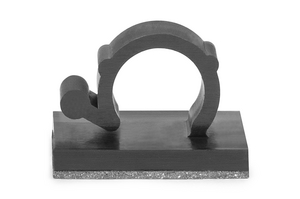

RA3-18 Series (plan view)
MAGRA-Series magnetic mounts with clips – reusable, removable, and no drilling required.

    • Quick to install and easy to adjust once fitted (reusable)
    • Flexible neodymium magnet with adhesive backing
    • Can be used without cable ties offering process optimization
    • Different sizes for various bundle diameters available
    • Designed to hold wires, cables or hoses
    • Ideal for use on steel surfaces where it is not possible to drill holes
    • Suitable for challenging surfaces like slightly dirty areas where adhesives fail
    Add to watchlist
    Downloads

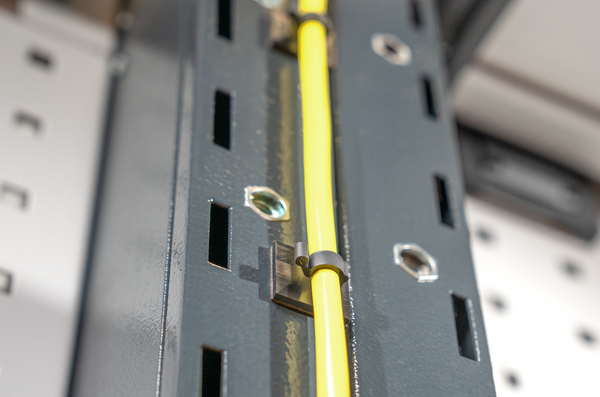

    Application Magnetic mounts and clips are innovative solutions designed to meet the demands of modern cable management and mounting needs. They combine ease of use with versatility, offering a practical and efficient alternative to traditional mounting methods. Whether in dynamic work environments or temporary setups, these mounts and clips provide advantages that set them apart from other options on the market.
    Color Black (BK)
    Magnetic pull strength (kgf) 0.00
    PART DESCRIPTION MAGRA6-PA66/NDFEBR5-BK
    Packaging Type bag
    Part No. 151-04468
    Type MAGRA6
    Fixation Method Magnet
    Height (metric) 9.0mm
    Length (metric) 19.0mm
    Max. Bundle Diameter (metric) 6.0mm
    Width (metric) 19.0mm
    CE Certification No
    Flammability UL 94 V-2 (excluding adhesive)
    Halogen Free Yes
    Material PA66, NDFEBR5
    Material Polyamide 6.6 (PA66), Neodymium alloy R5 (NDFEBR5)
    Operating Temperature -40°F to +185°F (-40°C to +85°C)
    REACH Conformity Yes
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Packaging 1 - Weight (kg) 0.25kg
    Pkg. Qty. 25Pieces
