Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nom⌀=10.0 mm, nom⌀2=20.0 mm - 25.0 mm
Art.-No. 156-01910
| MOC10FLOC20-25-PA66HIRHSUV-BK
|
Copied
Colour | Black (BK) |
Key product features | removable, for multiple routing |
Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
PART DESCRIPTION | MOC10FLOC20-25-PA66HIRHSUV-BK |
Pack Cont. | 1000pcs. |
Package Content packed in | pack |
Type | MOC10FLOC20-25 |
UV-Stabilised | Yes |
Variant | Clip to Clamp |
Attach to ⌀ | 9.5 - 11.5, 20.0 - 25.0 |
Bundle ⌀ | 9.5-11.5mm |
Bundle ⌀ 2 max. | 25.0mm |
Bundle ⌀ 2 min. | 20.0mm |
Bundle ⌀ max. | 11.5mm |
Bundle ⌀ min. | 9.5mm |
Bundle Diameter Nom. (ND) | 10.0 mm |
Bundle Diameter Nom. 2 (ND2) | 20.0 mm - 25.0 mm |

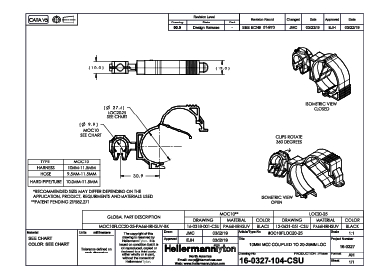

Depth (D) | 12.0mm |
Height (H) | 38.9mm |
Height (H2) | 19.6mm |
Length (L) | 55.20mm |
Length (L2) | 30.9mm |
