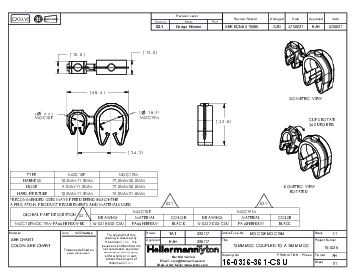

Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nom⌀=10.0 mm, nom⌀2=19.0 mm
Art.-No. 156-02338
| MOC10FMOC19M-PA66HIRHSUV-BK
Copied
- Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
| Brand Family | MOC-Series |
| Color | Black (BK) |
| Description | The MOC to MOC is a rotatable dual routing clip that keeps two routings secured and separated. A swivel coupler allows them to rotate independently of each other. |
| PART DESCRIPTION | MOC10FMOC19M-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 156-02338 |
| Product family | MOC Clips to MOC Clips |
| Product family | Products for wires and hoses, Products for parallel/multiple routing |
| Short Desc. | MOC Clip to MOC Clip, 10 mm, 19 mm, PA66HIRHSUV, Black, 1000/ctn |
| Type | MOC10FMOC19M |
| UV Resistant | Yes |
| Depth (imperial) | 0.47" |
| Depth (metric) | 12.0mm |
| Height (imperial) | 1.29" |
| Height (metric) | 32.8mm |
| Height 2 (imperial) | 1.29" |
| Height 2 (metric) | 32.8mm |
| Length (imperial) | 1.91" |
| Length (metric) | 48.4mm |
| Length 2 (imperial) | 1.03" |
| Length 2 (metric) | 26.2mm |
| Max. Bundle Diameter (imperial) | 0.45" |
| Max. Bundle Diameter (metric) | 11.5mm |
| Max. Bundle Diameter 2 (imperial) | 0.86" |
| Max. Bundle Diameter 2 (metric) | 21.8mm |
| Min. Bundle Diameter (imperial) | 0.37" |
| Min. Bundle Diameter (metric) | 9.5mm |
| Min. Bundle Diameter 2 (imperial) | 0.67" |
| Min. Bundle Diameter 2 (metric) | 17.0mm |
| Nominal Bundle Diameter (imperial) | 0.39" |
| Nominal Bundle Diameter (metric) | 10.0 mm |
| Nominal Bundle Diameter 2 (imperial) | 0.75" |
| Nominal Bundle Diameter 2 (metric) | 19.0 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
