14/06/2025

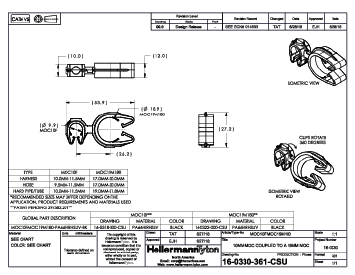

Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nom⌀=10.0 mm, nom⌀2=19.0 mm
Art.-No. 156-02064 | MOC10FMOC19M180-PA66HIRHSUV-BK |

Copied
A rotatable dual routing clip that keeps two routings secured and separated.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC10FMOC19M180-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in pack
    Type MOC10FMOC19M180
    Variant Clip to Clip Transverse
    Bundle ⌀ 9.5-11.5mm
    Bundle ⌀ 2 max. 21.8mm
    Bundle ⌀ 2 min. 17.0mm
    Bundle ⌀ max. 11.5mm
    Bundle ⌀ min. 9.5mm
    Bundle Diameter Nom. (ND) 10.0 mm
    Bundle Diameter Nom. 2 (ND2) 19.0 mm
    Depth (D) 12.0mm
    Height (H) 27.3mm
    Height (H2) 27.3mm
    Length (L) 53.90mm
    Length (L2) 26.2mm
    UV-Stabilised Yes
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026716893
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 204.25kg
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Width (m) 0.314325m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
