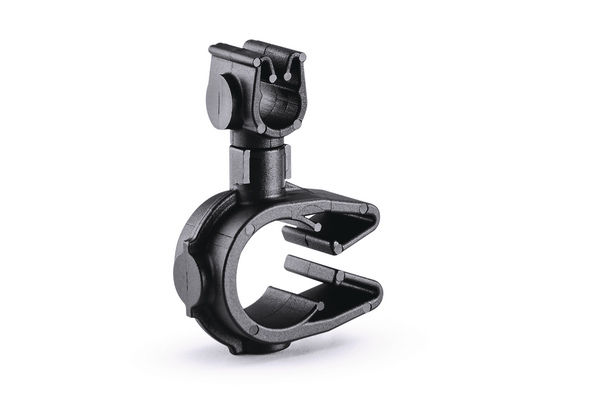

Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nomØ=10.0 mm, nomØ2=5.0 mm, black, 2000
Art.-No. 156-02055 | MOC10FMOC5M180-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Cont. 2000
    Package Content packed in carton
    PART DESCRIPTION MOC10FMOC5M180-PA66HIRHSUV-BK
    Variant Clip to Clip Transverse
    Bundle Diameter max (metric) 11.5mm
    Bundle Diameter Nom. (ND) 10.0 mm
    Bundle Diameter Nom. 2 (ND2) 5.0 mm
    Bundle ∅ 9.5-11.5mm
    Bundle ∅ 2 max. 5.5mm
    Bundle ∅ 2 min. 4.0mm
    Bundle ∅ min. 9.5mm

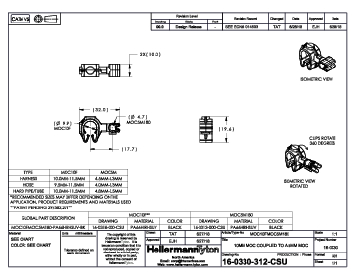

    Depth (D) 10.0mm
    Height (H) 19.6mm
    Length (L) 31.96mm
    Length (L2) 17.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026715940
    Packaging 1 - Weight (kg) 201.63kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
