Cable clip with pipe/tube holder, Dmin=10.5mm, Dmax=13.8mm, nom⌀=12.0 mm, nom⌀2=9.0 mm
Art.-No. 156-02083 | MOC12FMOC9M180-PA66HIRHSUV-BK |

Copied
A rotatable dual routing clip that keeps two routings secured and separated.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC12FMOC9M180-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in pack
    Type MOC12FMOC9M180
    Variant Clip to Clip Transverse
    Bundle ⌀ 10.5-13.8mm
    Bundle ⌀ 2 max. 10.0mm
    Bundle ⌀ 2 min. 8.0mm
    Bundle ⌀ max. 13.8mm
    Bundle ⌀ min. 10.5mm
    Bundle Diameter Nom. (ND) 12.0 mm
    Bundle Diameter Nom. 2 (ND2) 9.0 mm

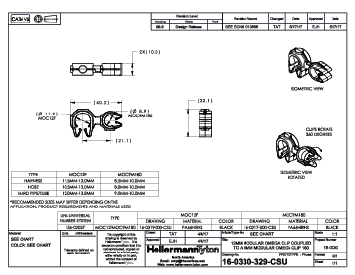

    Depth (D) 10.0mm
    Height (H) 22.1mm
    Length (L) 40.2mm
    Length (L2) 21.1mm
    UV-Stabilised Yes
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026716077
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 202.31kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
