02/05/2024

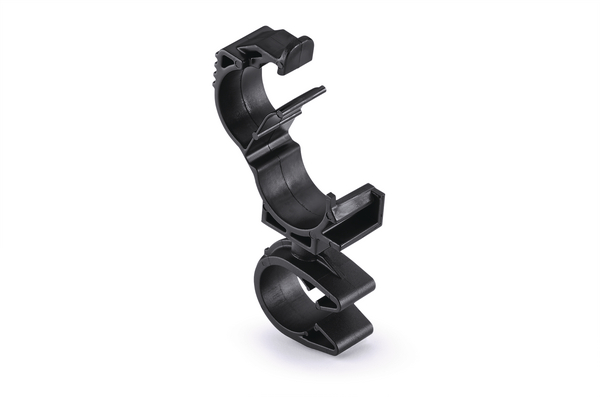

Cable clip with pipe/tube holder, Dmin=14.0mm, Dmax=18.3mm, nomØ=16.0 mm, nomØ2=10.0 mm - 14.0 mm, black, 2000
Art.-No. 156-01867 | MOC16FLOC10-14-PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads
    Colour Black (BK)
    Key product features for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Pack Cont. 2000
    Package Content packed in carton
    PART DESCRIPTION MOC16FLOC10-14-PA66HIRHS-BK
    Variant Clip to Clamp
    Attach to Ø 14.0 - 18.3, 10.0 - 14.0mm
    Bundle Diameter max (metric) 18.3mm
    Bundle Diameter Nom. (ND) 16.0 mm
    Bundle Diameter Nom. 2 (ND2) 10.0 mm - 14.0 mm
    Bundle ∅ 14.0-18.3mm
    Bundle ∅ 2 max. 14.0mm
    Bundle ∅ 2 min. 10.0mm
    Bundle ∅ min. 14.0mm
    Depth (D) 12.0mm
    Height (H) 27.4mm
    Height (H2) 25.7mm
    Length (L) 51.20mm
    Length (L2) 28.2mm
    Weight/Unit 0.00445kg
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026715636
    Packaging 1 - Weight (kg) 204.73kg
    Packaging 3 - Height (m) .421m
    Packaging 3 - Length (m) 0.606m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1021m³
    Packaging 3 - Weight (kg) 9.5kg
    Packaging 3 - Width (m) .400m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
