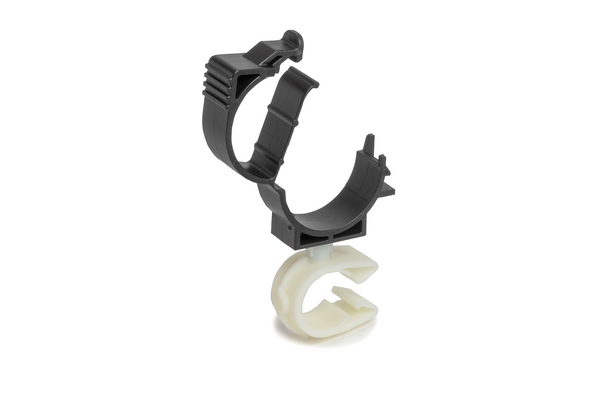

Cable clip with pipe/tube holder
Art.-No. 156-03864 | MOC16FLOC20-25-PA66HIRHS/PA66HIRHSUV-NA/BK

Copied
33600452

    Add to watchlist
    Downloads
    Colour Natural (NA), Black (BK)
    Key product features removable, for multiple routing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC16FLOC20-25-PA66HIRHS/PA66HIRHSUV-NA/BK
    Package Content 1000pcs.
    Package Content packed in carton
    Type MOC16FLOC20-25
    UV-Stabilised Yes
    Weight/Unit 0.0065kg
    Bundle Diameter Nom. (ND) 16.0 mm
    Bundle Diameter Nom. 2 (ND2) 20.0 mm - 25.0 mm
    Height (H) 38.9mm
    Length (L2) 33.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026817880
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 6.4999787kg
    Packaging 3 - Height (m) 0.216m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0521m³
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
