02/05/2024

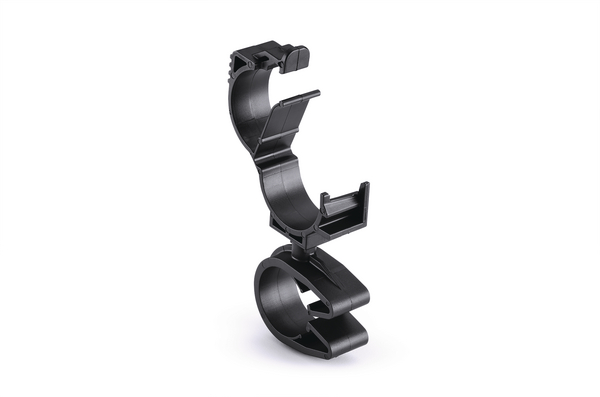

Cable clip with pipe/tube holder, Dmin=17.0mm, Dmax=21.8mm, nomØ=19.0 mm, nomØ2=15.0 mm - 19.0 mm, black, 1000pcs.
Art.-No. 156-01893 | MOC19FLOC15-19-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads
    Colour Black (BK)
    Key product features removable, for multiple routing, rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Cont. 1000pcs.
    Package Content packed in carton
    PART DESCRIPTION MOC19FLOC15-19-PA66HIRHSUV-BK
    Variant Clip to Clamp
    Attach to Ø 17.0 - 21.8, 15.0 - 19.0mm
    Bundle Diameter max (metric) 21.8mm
    Bundle Diameter Nom. (ND) 19.0 mm
    Bundle Diameter Nom. 2 (ND2) 15.0 mm - 19.0 mm
    Bundle ∅ 17.0-21.8mm
    Bundle ∅ 2 max. 19.0mm
    Bundle ∅ 2 min. 15.0mm
    Bundle ∅ min. 17.0mm
    Depth (D) 12.0mm
    Height (H) 33.4mm
    Height (H2) 32.8mm
    Length (L) 55.50mm
    Length (L2) 33.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026715766
    Packaging 1 - Weight (kg) 206.24kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
