MOC22FOSMOC22F-PA66HIRHSUV-BK
Art.-No. 156-03519 | MOC22FOSMOC22F-PA66HIRHSUV-BK |

Copied

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)

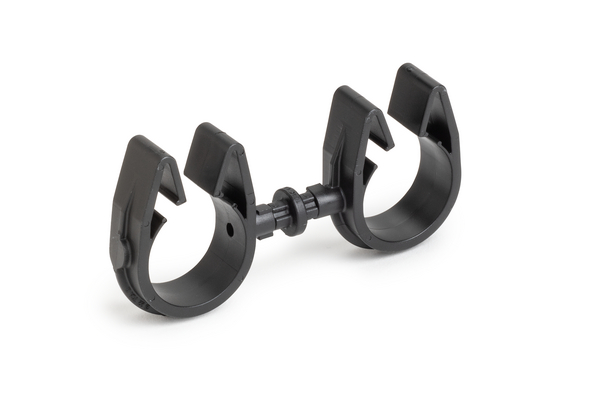

    PART DESCRIPTION MOC22FOSMOC22F-PA66HIRHSUV-BK
    Package Content 1000
    Package Content packed in carton
    Type MOC22FOSMOC22F
    UV-Stabilised Yes
    Bundle ⌀ 20.0-24.0mm
    Bundle ⌀ max. 24.0mm
    Bundle ⌀ min. 20.0mm
    Height (H) 36.5mm
    Length (L) 79.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026777801
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.209549999999999m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0504m³
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
