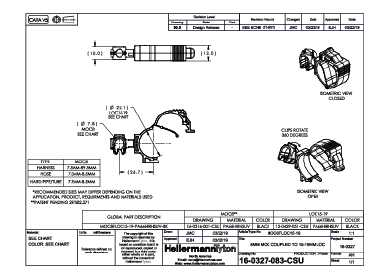

Cable clip with pipe/tube holder, Dmin=7.0mm, Dmax=9.0mm, nom⌀=8.0 mm, nom⌀2=15.0 mm - 19.0 mm
Art.-No. 156-01881
| MOC8FLOC15-19-PA66HIRHSUV-BK
Copied
- Patented retention design of clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Clip and clamp both offer easy bundle installation.
- Independent rotation allows for adjustable routing orientation.
- Locking clamp dynamically fits a range of bundle sizes.
| Color | Black (BK) |
| Description | The MOC to LOC is a rotatable dual routing clip and clamp combination that keeps two routings secured and separated. A swivel coupler allows them to rotate independently of each other. |
| PART DESCRIPTION | MOC8FLOC15-19-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 156-01881 |
| Product family | MOC Clips to LOC Clamps |
| Product family | Products for wires and hoses, Products for parallel/multiple routing |
| Short Desc. | LOC Locking Clamp, 15-19 mm, to MOC Clip, 8 mm, PA66HIRHSUV, Black, 1000/ctn |
| Type | MOC8FLOC15-19 |
| UV Resistant | Yes |
| Depth (imperial) | 0.47" |
| Depth (metric) | 12.0mm |
| Height (imperial) | 1.31" |
| Height (metric) | 33.4mm |
| Height 2 (imperial) | 0.6" |
| Height 2 (metric) | 15.20mm |
| Length (imperial) | 1.70" |
| Length (metric) | 43.30mm |
| Length 2 (imperial) | 1.05" |
| Length 2 (metric) | 26.7mm |
| Max. Bundle Diameter (imperial) | 0.35" |
| Max. Bundle Diameter (metric) | 9.0mm |
| Max. Bundle Diameter 2 (imperial) | 0.75" |
| Max. Bundle Diameter 2 (metric) | 19.0mm |
| Min. Bundle Diameter (imperial) | 0.28" |
| Min. Bundle Diameter (metric) | 7.0mm |
| Min. Bundle Diameter 2 (imperial) | 0.59" |
| Min. Bundle Diameter 2 (metric) | 15.0mm |
| Nominal Bundle Diameter (imperial) | 0.31" |
| Nominal Bundle Diameter (metric) | 8.0 mm |
| Nominal Bundle Diameter 2 (imperial) | 0.59" - 0.75" |
| Nominal Bundle Diameter 2 (metric) | 15.0 mm - 19.0 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
