16/09/2026

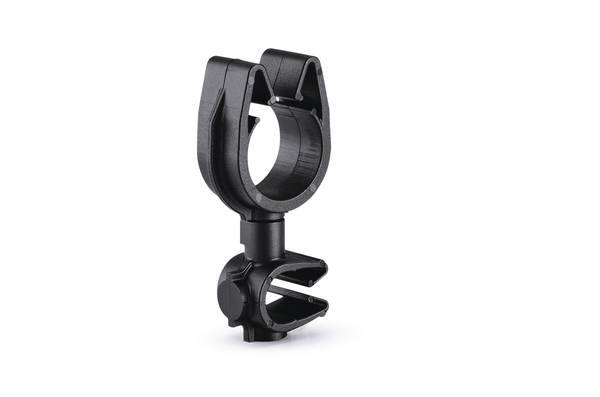

Cable clip with pipe/tube holder, Dmin=7.0mm, Dmax=9.0mm, nom⌀=8.0 mm, nom⌀2=14.0 mm


Art.-No. 156-02014

| MOC8FMOC14M180-PA66HIRHSUV-BK

 |

Copied
A rotatable dual routing clip that keeps two routings secured and separated.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    No. of bundles 2
    PART DESCRIPTION MOC8FMOC14M180-PA66HIRHSUV-BK
    Package Content 2000
    Package Content packed in pack
    Type MOC8FMOC14M180
    UV-Stabilised Yes
    Variant Clip to Clip Transverse
    Bundle ⌀ 7.0-9.0mm
    Bundle ⌀ 2 max. 15.8mm
    Bundle ⌀ 2 min. 13.0mm
    Bundle ⌀ max. 9.0mm
    Bundle ⌀ min. 7.0mm
    Bundle Diameter Nom. (ND) 8.0 mm
    Bundle Diameter Nom. 2 (ND2) 14.0 mm
    Depth (D) 10.0mm
    Height (H) 20.9mm
    Length (L) 42.15mm
    Length (L2) 21.9mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026716633
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 202.37kg
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Width (m) 0.314325m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
